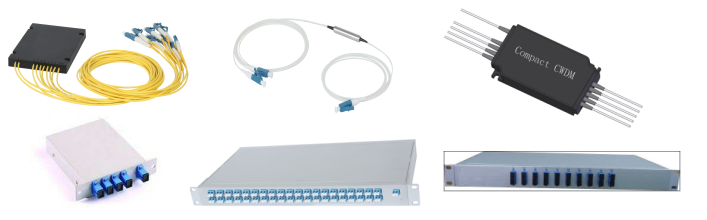

ATEL provides a comprehensive range of passive WDM components to suit every application. We have the industries
widest selection of CWDM, DWDM and OADM products for indoor and outdoor environments.
Wavelength division multiplexing (WDM) technology

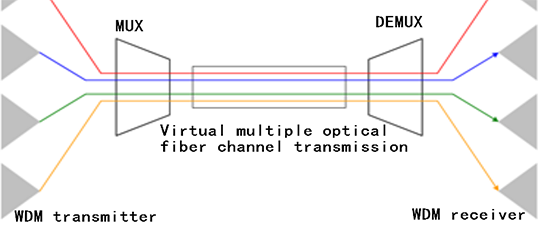

Wavelength division multiplexing (WDM) is that Use multiplexer (MUX) to multiplex different WDM wavelength
optical carrier signal into one fiber for transmission in the transmitter, then use DeMUltipleXer (DEMUX) to Separate
each WDM wavelength in receiver. Each WDM wavelength signals are independent of each other, and is not affected
by any transport protocol and rate.
CWDM and DWDM all belong to the WDM technology. The difference is that they are in the spectrum of different
channel spacing. CWDM have 16 band that from 1270 nm to 1610 nm, interval between each band to 20 nm.
Generally use the DFB laser, its laser and filter device is cheaper. DWDM channel interval according to the need
to have 3 kinds: 0.4 nm (50 GHZ), 0.8 nm (100 GHZ), and 1.6 nm (200 GHZ), need extra wavelength control device.

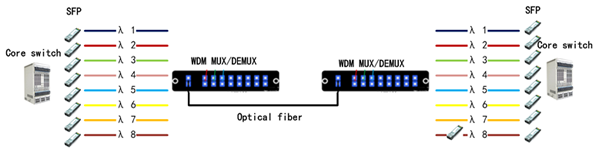

WDM fiber expansion solution, no installation or hiring extra fiber, Point-to-point topology application method,
simple implementation, refer to below:
