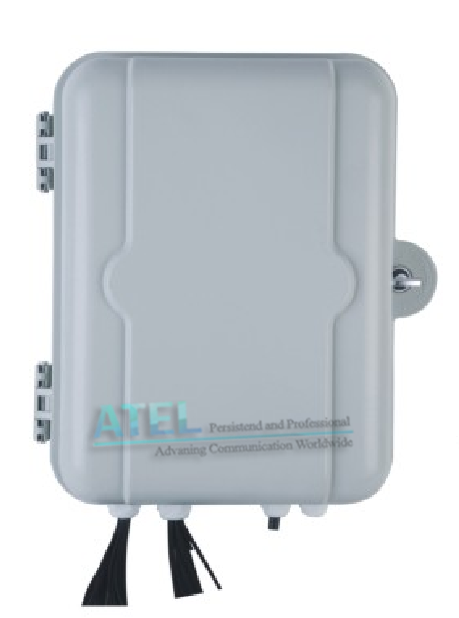

FTB-16 cores FTTH BOX
Time:2017/10/13 12:02:52

AT-FF16A-FTB-16 cores


Spectral distribution box is mainly used to branch the fiber, usually hanging in the lower stairs on the wall or green belt



Features:

1、The box made of SMC material, the service life of more than 20 years;

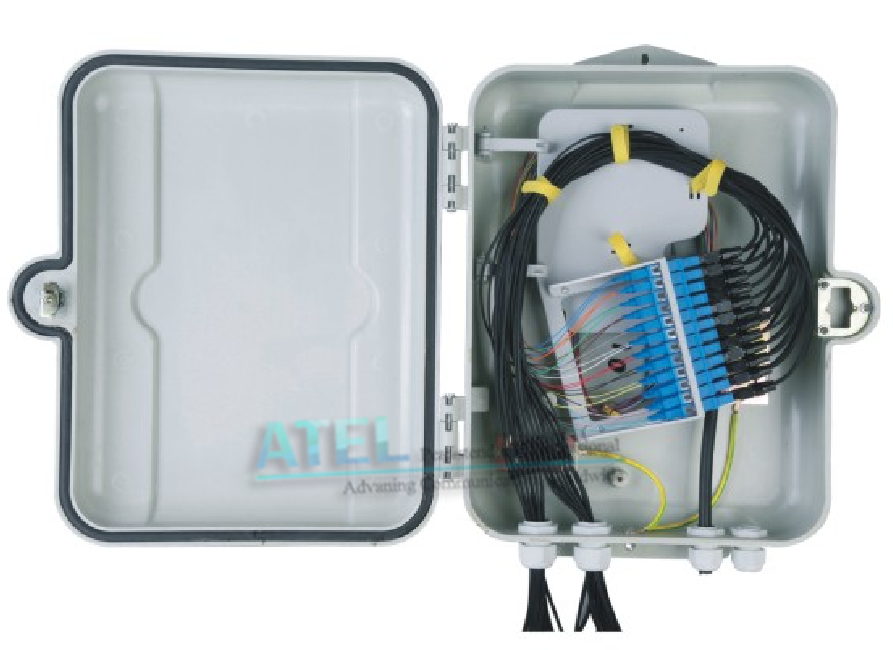

2、Double-layer structure design, the upper layer for the optical splitter wiring layer, the lower layer for the optical fiber welding layer;

3、The operation, the light sub-unit directly placed in the plug-in optical splitter box, insert-type optical splitter box can be based on user capacity stack combination;


Name

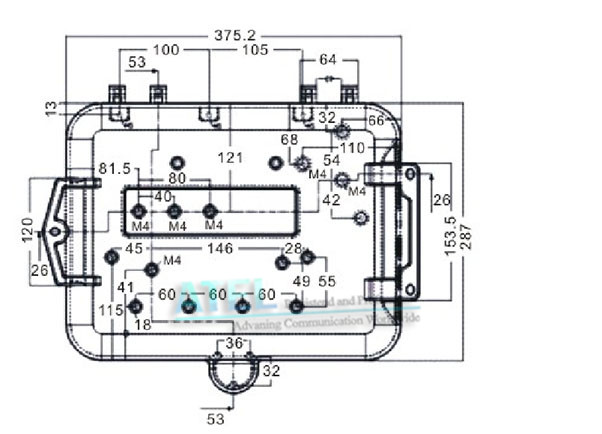

Dimensions

(H×W×D)

Way of Open

Installation method

Way of usage

AT-FF16A

420×350×120

Positive single door open

Wall mounted

Pole installation

2 x 8 core insert type optical divider (spectroscopic type)

Install 24 SC / PC adapters (Terminal type)

Leather and cable hot-melt (straight-melt type)
