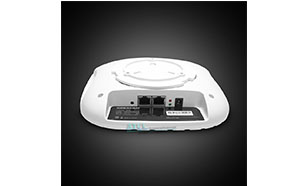

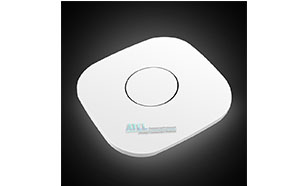

ATA-95007 Enterprise-class dual-band AP

Product description
ATA-95007 is an ultra-thin indoor ceiling slim AP, which is mainly applied to Wi-Fi coverage in hotels, cafes, and homes. This AP uses 2T2R 2.4G and 5G wireless MIMO technology, bandwidth up to 750 Mbps, supports up to 50 users at the same time wireless Internet access; external power supply using 48V POE power supply technology, perfect support for 80 meters of power supply, not only reduces installation costs, but also Installation is more flexible.
Hardware features
v it provides wireless access speeds of up to 750Mbps, and the NAT conversion rate is >93%.
v The product supports IEEE802.3az, which automatically adjusts the energy consumption according to the actual traffic of the port and saves energy.
v Beam forming technology，Suppression of interference
v Seamless roaming technology
v Support scheduled restart
Parameter
|
Hardware
|
|
Model
|
ATA-95007
|
|
main chip
|
Qualcomm QCA9531+9887 750Mbps
|
|
Clock frequency
|
CPU：550MHz DDR:N/A Ref:40MHz
|
|
Wireless echnology
|
2.4G:300M 802.11b/g/n MIMO ，5.8G:450M MIMO
|
|
Memory
|
64MB DDR RAM(UP to 128MB DDR RAM)
|
|
Flash
|
8MB（maximum support 16MB）
|
|
Network Interface
|
2*10/100 Mbps Adaptive Network Interface
|
|
Button
|
1* Digital switch/reset button, hold for 15 seconds to restore factory settings
|
|
Indicator light
|
Signal SIG indicator, ETH network interface status indicator, power indicator
|
|
Power supply
|
48V 0.5A (48V 0.5A optional) standard POE;
DC 12V 1.5A, power consumption <10W
|
|
Temperature
|
-30℃～+55℃（Working ），-40℃ ～+70℃（storage）
Humidity (non-condensing)：10％～90％（working），5％～95％（storage）
|
|
Antenna
|
Built-in dual polarization high gain 6dbi omnidirectional antenna
|
|
Modulation
|
OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
|
|
Output Power
|
11b @54M:25±2DB, @6M:27±2DB
11n @MCS7:23±2DB, @MCS0:25±2DB
|
|
Radio frequency
|
|
Frequency range
|
ISM band: 2.412 ~ 2.472 GHz,5.15 ~ 5.85 GHz
|
|
channel
|
2G:1、2、3、4、5、6、7、8、9、10、11、12、13
5G：36、40、44、48、52、56、60、64、149、153、157、161
|
|
Receiver sensitivity
|
11a: 72dbm@54Mbps, -90dbm@6Mbps
11n: -70dbm@MCS7, -90dbm@MCS0
|
|
EVM
|
802.11n: ≤-28 DB 802.11a: ≤-25 DB
|
|
Frequency deviation
|
±20ppm
|
|
Software features
|
|
Working Mode
|
AP
|
|
Communication standard
|
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.11b/g/n (2.4G WLAN)
|
|
Wireless Settings
|
Intelligent Channel Analysis
Distance control 802.1x ACK time output
up to 8 Multiple SSIDs, can be configured (Chinese SSID is supported)
BSSID
|
|
Wireless Security
|
WEP Security Supports 64/128/152-bit WEP Security Password
WPA/WPA2 security mechanism (WPA-PSK uses TKIP or AES)
WPA/WPA2 Security Mechanism (WPA-EAP uses TKIP)
Hide SSID security mechanism
|
|
System Settings
|
WEB Configuration (HTTP/Remote Login)
|
|
Software upgrade
|
WEB page or TFTP to upgrade software
|
|
User Management
|
Configurable Users and Passwords
|
|
System Monitoring
|
Equipment and Network Status Statistics
|
|
Logs
|
Provide local logs, host logs, and file transfer logs
|
|
Restore settings
|
Restore default settings
|
|
Backup function
|
can backup system configuration and restore user configuration when needed
|
|
