Cassette Coupler

Specifications:

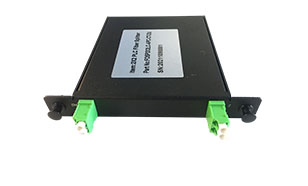

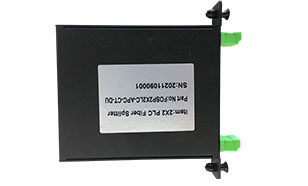

Patch Cassette PLC splitter
1x2,1x4,1x8,1x16,1x32,1x64, 2x4, 2x8, 2x16PLC splitter.
Low Insertion Loss
Key Features:
-
Low IL &PDL
-
High reliability good channel-to-channel uniformity
-
Wide operating wavelength small size
-
Large operating temperature range& Excellent Environmental
Applications:
-
FTTX (FTTP, FTTH, FTTN, FTTC)
-
Local Area Networks (LAN)
-
Cable television (CATV) &Passive Optical Networks (PON)
-
Test Equipment
|
Parameters
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|
Operating Wavelength(nm)
|
1260~1650
|
|
Fiber Type
|
SMF-28e or customer specified
|
|
Insertion Loss (dB)(S/P Grade)
|
3.9/3.7
|
7.2/7.0
|
10.2/10.0
|
13.5/13.3
|
16.5/16.3
|
20.5/20.0
|
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.5
|
|
Return Loss (dB) (S/P Grade)
|
50/55
|
50/55
|
50/55
|
50/55
|
50/55
|
50/55
|
|
Polarization Dependent Loss(PDL, dB)
|
0.2
|
0.2
|
0.3
|
0.3
|
0.4
|
0.4
|
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
|
Temperature Stability(-40~85 °C)(dB)
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Operating Temperature (°C)
|
-40~85
|
|
Storage Temperature (°C)
|
-40~85
|
|
Parameters
|
2x2
|
2x4
|
2x8
|
2x16
|
2x32
|
2x64
|
|
Operating Wavelength(nm)
|
1260~1650
|
|
Fiber Type
|
G657A1
|
|
Insertion Loss (dB)(S/P Grade)
|
4.5/4.2
|
7.5/7.3
|
10.8/10.5
|
13.8/13.5
|
16.8/16.6
|
20.8/20.3
|
|
Loss Uniformity (dB)
|
0.5
|
0.6
|
0.8
|
1.2
|
1.5
|
2.5
|
|
Return Loss (dB) (S/P Grade)
|
50/55
|
50/55
|
50/55
|
50/55
|
50/55
|
50/55
|
|
Polarization Dependent Loss(PDL, dB)
|
0.2
|
0.2
|
0.3
|
0.3
|
0.4
|
0.4
|
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
|
Temperature Stability(-40~85 °C)(dB)
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Operating Temperature (°C)
|
-40~85
|
|
Storage Temperature (°C)
|
-40~85
|
|
