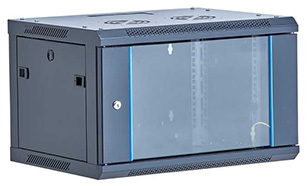

Single Section Wall Mounted Cabinets
Standard
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, and DIN41494 part 7, GBIT3047.2-92 standard.
Feature
19 inch width standard;
Removable Side Panels, side locks optional;
Knock off hole for entering cable on both top cover, bottom panel, real panel
Turning angle of front door is over 180 degrees
Easy mounting installation
Unassembled package saving shipping space
fan, shelf, PDU are optional
Loading Capacity: 80KG
Degree of Protection: IP20
Material
SPCC Cold Rolled Steel
Thickness: 2.0mm-1.2mm-1.0mm
Surface Finish: Powder coating
Cabinet details

Fan exhaust hole Fan unit optional Removable side panels(Side lock optional)

Cable entrance on rear panel Front door lock (Blue strip optional) Zinc plated mounting profile (Ground wire optional)

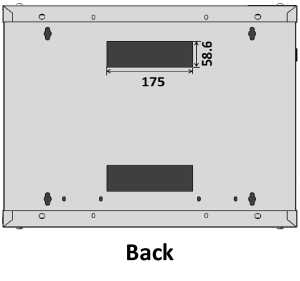

Main dimension

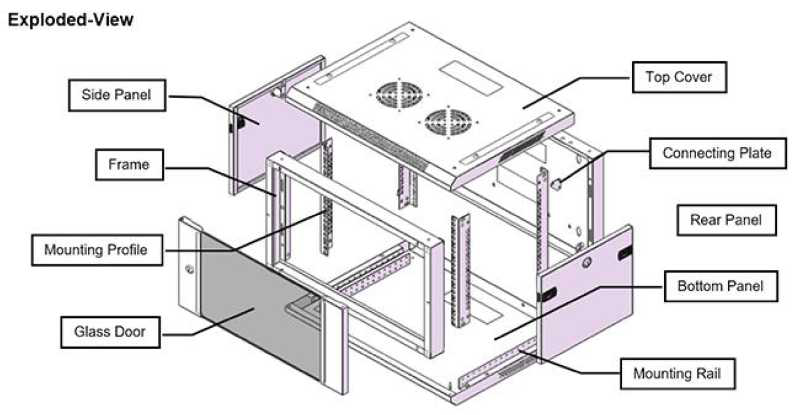

Main Parts
|
S/N
|
Specification
|
Quantity
|
Unit
|
Material
|
Surface Finish
|
Remark
|
|
1
|
Frame
|
1
|
Piece
|
SPCC cold rolled steel t1.0
|
Powder coated
|
|
|
2
|
Side panel
|
2
|
Piece
|
SPCC cold rolled steel t1.0
|
Powder coated
|
|
|
3
|
Top cover
|
1
|
Piece
|
SPCC cold rolled steel t1.2
|
Powder coated
|
|
|
4
|
Bottom panel
|
|
|
SPCC cold rolled steel t1.2
|
|
|
|
5
|
Mounting profile
|
4
|
Piece
|
SPCC cold rolled steel t2.0
|
Powder coated
|
|
|
6
|
Front door
|
1
|
Piece
|
5MM toughened glass door/SPCC t1.2
|
Powder coated
|
|
|
7
|
Lock
|
1
|
Piece
|
|
|
with 2 keys
|
|
8
|
M6 Square nut
|
12
|
Piece
|
Steel
|
Color Zinc
|
|
|
9
|
M6 B-head screw
|
12
|
Piece
|
Steel
|
Color Zinc
|
|
|
10
|
Allen wrench
|
1
|
Piece
|
Steel
|
Color Zinc
|
|
Specification
|
Model No.
|
Capacity
|
Width
|
Depth
|
Height
|
Packing dimension
|
Volume
|
|
|
(U)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(CBM)
|
|
WM.6404
|
4
|
600
|
450
|
280
|
635*485*220
|
0.0678
|
|
WM.6604
|
600
|
635*635*220
|
0.0887
|
|
WM.6406
|
6
|
600
|
450
|
368
|
635*485*220
|
0.0678
|
|
WM.6606
|
600
|
635*635*220
|
0.0887
|
|
WM.6409
|
9
|
600
|
450
|
501
|
635*534*220
|
0.0746
|
|
WM.6609
|
600
|
635*635*220
|
0.0887
|
|
WM.6412
|
12
|
600
|
450
|
635
|
635*668*190
|
0.0806
|
|
WM.6612
|
600
|
635*668*220
|
0.0933
|
|
WM.6415
|
15
|
600
|
450
|
769
|
635*802*190
|
0.0968
|
|
WM.6615
|
600
|
635*802*220
|
0.1120
|
|
WM.6418
|
18
|
600
|
450
|
901
|
635*935*190
|
0.1128
|
|
WM.6618
|
600
|
635*934*220
|
0.1305
|
Color:
|
RAL9004
|
RAL7035
|
|
black
|
grey
|
|
|
|
Definition of Ornament strip color for toughened glass door:
Definition of front door
|
Model No.
|
Feature
|
Lock
|
|
WM
|
Toughened glass door
|
Small round lock
|
|
WMH
|
Toughened glass door with round vented border
|
Handle lock
|
|
E02
|
Toughened glass door with bar vented border frame
|
Small round lock
|
|
EN
