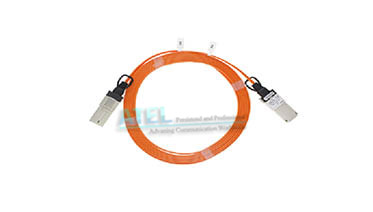

120G CXP  Active Optical Cable

Description

CXP-CXP active optic cables are a high performance, low power consumption, long reach interconnect Page 2 of 11 June / 2013 Rev. A solution supporting 120G Ethernet, fiber channel and PCIe. It is compliant with the 120Gbits Small Form factor Hot-Pluggable CXP-interface. The CXP AOC is an assembly of 12 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 120Gb/s.

Features

- Full duplex 12 channels 850nm parallel active optical cable

- Transmission data rate up to 10.3Gb/s per channel

- Hot pluggable electrical interface

- Differential AC-coupled high speed data interface

- 12 channels 850nm VCSEL array

- 12 channels PIN photo detector array

- Multi-mode optical fibre cable of up to 300m(OM3) or 400m(OM4)

- Low power consumption < 2W

- Operating case temperature 0°C to +70°C

- 3.3V power supply voltage

- RoHS 6 compliant

Applications

- Infiniband transmission at 12ch SDR, DDR and QDR

- Switches, Routers

- Data Centers

- Other 120G Interconnect Requirement

Ordering information
