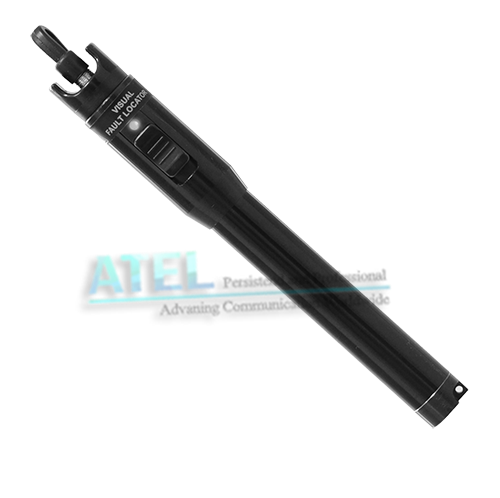

Pen-type Visual Fault Locator
(VFL)
AT3105A
Features
- 2.5mm universal connector, for 1.25mm
connectors, FC (Male)-LC (Female) convertor can be provided on requests.
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long battery life (up to 60 hours)
- Crash-proof and dust-proof design for
laser head
- Laser case ground design prevents ESD damage
- Burning testing to ensure the reliability.
- Portable and rugged, easy to use
Applications
- Maintenance in Telecom
- Maintenance CATV
- Fiber Optic Lab Testing
|
Type
|
AT3105A pen-type Visual Fault Locator
|
|
Central Wavelength
|
650nm±10nm (635nm can be required on request)
|
|
Emitter Type
|
FP-LD
|
|
Output Power
|
Optional choice for 1mw, 10mw on actual needs
|
|
Optical Connector
|
2.5mm universal connectorFor 1.25mm connectors, FC (Male)-LC
(Female) convertor can be optional on customer requests
|
|
Operating Model
|
Both CW and Pulse available
|
|
Pulse Frequency
|
2~3Hz
|
|
Power Supply
|
2 AA alkaline batteries
|
|
Battery Operating Time
|
650nm@1mw ≥65hou
r650nm@10mw≥15hour
Test with Panasonic LR6 AA ALKALINE battery
|
|
Operating Temperature (℃)
|
-10~+45
|
|
Storage Temperature(℃)
|
-40~+70
|
|
Dimension (mm)
|
15*15*180
|
|
Weight
|
90g(Without battery)
|
|
