1 / 2 / 4 port POE 10/100M series POE Switch

The POE switch provides power and data transmission via Cat cables. POE ports supply power at the standard of IEEE802.3af/at. Auto-sensing function can supply power to PD device (IEEE802.3af/at standard). If the PoE device disconnected, it would stop supplying power. The POE switch features simple and reliable design, automatic identification of PoE supply voltage and power, speed, full duplex and Auto Uplink cable type.
This cost-effective switch can apply to wireless access point (AP) and IP-based surveillance Network solutions.
>> Feature
◆ IEEE 802.3af/at power on POE ports
◆ Supply power to wireless access points and surveillance cameras over Cat cable
◆ POE ports support MDI/MDIX
◆ Support PoE power up to 15.4W(IEEE802.3af)/25.5W(IEEE802.3at) for PoE ports
◆ POE Lines: End-Span(12+,36-), Mid-Span(25+,78-)
◆ Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
◆ LED indicators for monitoring power, link, activity and speed
◆ Network Media: 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤150m);100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤150m);1000BASE-TX: 6 Category and above UTP(≤150m)
◆ Working Environment: Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing
◆ Forwarding Mode: Store-And-Forward
◆ MTBF: 100,000 hours
>> Application
◆ Wireless Access Point
◆ IP Camera
◆ IP Phone
◆ Computer Networks
>> Specification

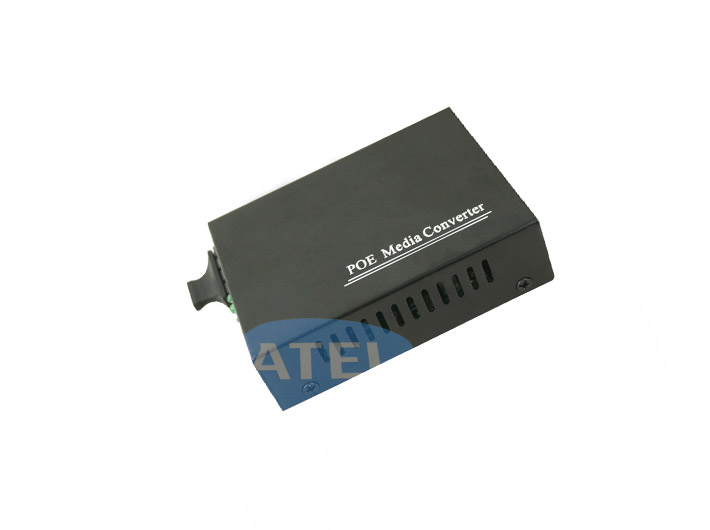

◆ 1port POE 10/100M series
|
POE Port
|
1 POE 10/100Mbps
|
|
Uplink
|
1 UTP 10/100Mbps, or 1 Fiber 100Mbps
|
|
Bandwidth
|
1Gbps
|
|
Address Database Size
|
1K
|
|
Power Supply
|
DC52V
|
|
Max.Power Per Port
|
15.4W(IEEE802.3af) default, 25.5W(IEEE802.3at) optional
|
|
Network Protocols
|
IEEE 802.3,IEEE 802.3i 10BASE-T,IEEE 802.3u 100BASE-TX,
IEEE 802.3ab 1000BASE-T,IEEE 802.3z 1000BASE-X,IEEE 802.3af /IEEE 802.3at,IEEE 802.3x Flow control, IEEE 802.1q VLAN(optional)
|
|
LED Display
|
Power, POE, Ethernet
|
|
Transmission Distance
|
100meter for UTP ports; 0~120km for Fiber ports
|
|
Fiber Specification
|
Fiber Port: SC(default), FC/ST/LC(SFP)
Wavelength/Distance:
Dual Fiber 1310nm(2/20/40km);1550nm(60/80/100/120km)
Single Fiber 1310/1550nm(25/40km);1490/1550nm(60/80/100/120km)
|
|
1POE+1UTP
|
1POE+1SFP
|
|
1POE+1Dual Fiber
|
1POE+1Single Fiber
|
◆ 2port POE 10/100M series
|
POE Port
|
2 POE 10/100Mbps
|
|
Uplink
|
1 UTP 10/100Mbps, or 1 Fiber 100Mbps
|
|
Bandwidth
|
1Gbps
|
|
Address Database Size
|
1K
|
|
Power Supply
|
DC52V
|
|
Max.Power Per Port
|
15.4W(IEEE802.3af) default, 25.5W(IEEE802.3at) optional
|
|
Network Protocols
|
IEEE 802.3,IEEE 802.3i 10BASE-T,IEEE 802.3u 100BASE-TX,
IEEE 802.3af/at,IEEE 802.3x
|
|
LED Display
|
Power, POE, Ethernet
|
|
Transmission Distance
|
100meter for UTP ports; 0~120km for Fiber ports
|
|
Fiber Specification
|
Fiber Port: SC(default), FC/ST/LC(SFP)
Wavelength/Distance:
Dual Fiber 1310nm(2/20/40km);1550nm(60/80/100/120km)
Single Fiber 1310/1550nm(25/40km);1490/1550nm(60/80/100/120km)
|
|
2POE+1UTP
|
2POE+1SFP
|
|
2POE+1Dual Fiber
|
2POE+1Single Fiber
|

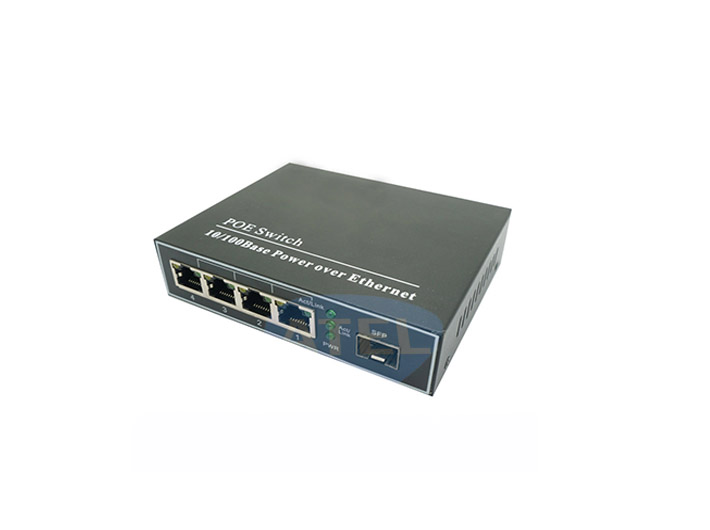

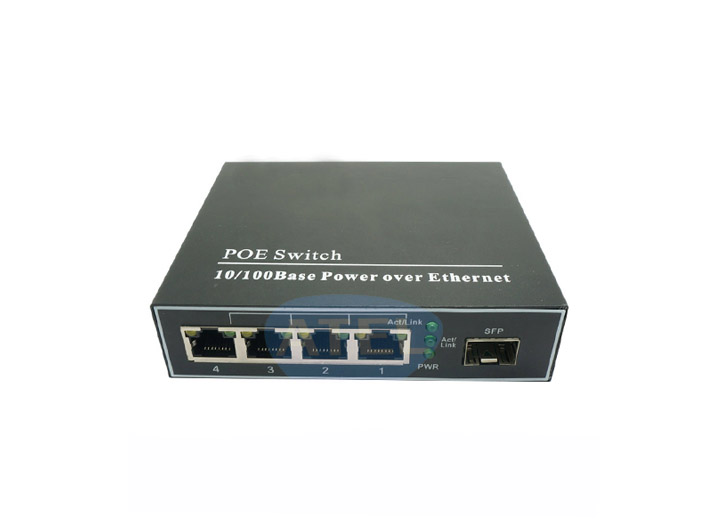

◆ 4port POE 10/100M series
|
POE Port
|
4 POE 10/100Mbps
|
|
Uplink
|
1 UTP 10/100Mbps, or 1 Fiber 100Mbps
|
|
Bandwidth
|
1.6Gbps
|
|
Address Database Size
|
1K
|
|
Power Supply
|
DC52V
|
|
Max.Power Per Port
|
15.4W(IEEE802.3af) default, 25.5W(IEEE802.3at) optional
|
|
Network Protocols
|
IEEE 802.3,IEEE 802.3i 10BASE-T,IEEE 802.3u 100BASE-TX,
IEEE 802.3af/at,IEEE 802.3x
|
|
LED Display
|
Power, POE, Ethernet
|
|
Transmission Distance
|
100meter for UTP ports; 0~120km for Fiber ports
|
|
Fiber Specification
|
Fiber Port: SC(default), FC/ST/LC(SFP)
Wavelength/Distance:
Dual Fiber 1310nm(2/20/40km);1550nm(60/80/100/120km)
Single Fiber 1310/1550nm(25/40km);1490/1550nm(60/80/100/120km)
|
|
4POE+1UTP
|
4POE+1SFP
|
|
4POE+1Dual Fiber
|
4POE+1Single Fiber
|
>> Ordering Information
|
Series
|
Model
|
Description
|
|
1POE 10/100M
|
AT-6002FE
|
1POE+1UTP
|
|
AT-6101FE-25
|
1POE+1Dual Fiber, 1310nm, 25km, SC
|
|
AT-6101FE-25A/B
|
1POE+1Single Fiber, 1310/1550nm, 25km, SC
|
|
AT-6101FE-SFP
|
1POE+1SFP
|
|
2POE 10/100M
|
AT-6003FE
|
2POE+1UTP
|
|
AT-6102FE-25
|
2POE+1Dual Fiber, 1310nm, 25km, SC
|
|
AT-6102FE-25A/B
|
2POE+1Single Fiber, 1310/1550nm, 25km, SC
|
|
AT-6102FE-SFP
|
2POE+1SFP
|
|
4POE 10/100M
|
AT-6005FE
|
4POE+1UTP
|
|
AT-6104FE-25
|
4POE+1Dual Fiber, 1310nm, 25km, SC
|
|
AT-6104FE-25A/B
|
4POE+1Single Fiber, 1310/1550nm, 25km, SC
|
|
AT-6104FE-SFP
|
4POE+1SFP
|
|
