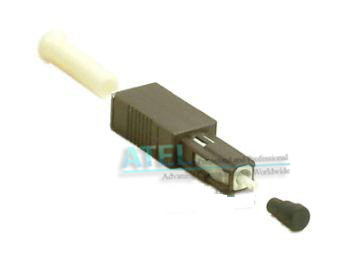

MU Fiber optic attenuator

Features

High durability

Attenuation levels ringing from 1dB to 30dB

Metal-ion doped fiber

Compliance with TIA / IEA, IEC, Rosh

Applications

1. EDFA, DWDM, Long-haul

2. Wide-Area Networks

3. Telecommunication networks

4. Gigabit applications ( ATM, Ethernet )



Specifications

Single mode

Multimode

APC

Insertion Loss

1 to 10 dB: ±0.5dB,  11-30dB: ±10%

Return Loss

≥50dB

≥20dB

≥60dB

Operating Temperature

–40 °C to +75 °C

Durability

≤0.1 dB typical change , 500 matings

Available Wavelengths

SM=1310 & 1550nm , MM=850nm
