RF Over Fiber Transmission Module
Time：2019/3/28 10:25:20
Product Features
AT-ROF030M-Tx : Transmitter module
AT-ROF030M-RX : Receiver module
Frequency range : 200 – 3000 MHz
Optical connector:  SC/APC or FC/APC are available according to customer needs
RF connectorL: SMA
The RF/Microwave over fiber transmission module AT-ROF030M designed for RF/wireless signal transmission over long distance, which overcome the problem of high loss when the RF/wireless signal transmit over coaxial cable or free space.

Profit
1.    High bandwidth
2.    Immune to RF jam
3.    Different wavelength is available 1310nm/1490nm/1550nm or WDM
4.    Compact size

Application
1.    Radar antenna remote
2.    For RF signal transmission over long distance
3.    Wireless signal transmission.
4.    GPS and other kind of navigation signal distribution
5.    EW

Specification
Parameters unit Typical value
Frequency range MHz 200 – 3000
Average Gain dB >0
Flatness dB ≤ ± 3.5
Input 1dB compression dBm ≥ -5
VSWR NA ≤ 2:1
Max input not damage RF power dBm 10
Noise Floor dBm ≤120@1Hz BW
Input/output impedance Ohm 50
Power supply VDC 6~12V
Power consumption W <2
Transmitter wavelength nm 1310/1550
Transmitter optical power dBm >0
Receiver working wavelength range nm 1100~1650
Optical connector NA FC/APC
RF connector NA SMA
Dimension mm 85*60*18
Environment
Operation temperature range 0C -40 to 60
Storage temperature 0C -55 to 85
Vibration   Per MIL STD-8108B Method 514 -5

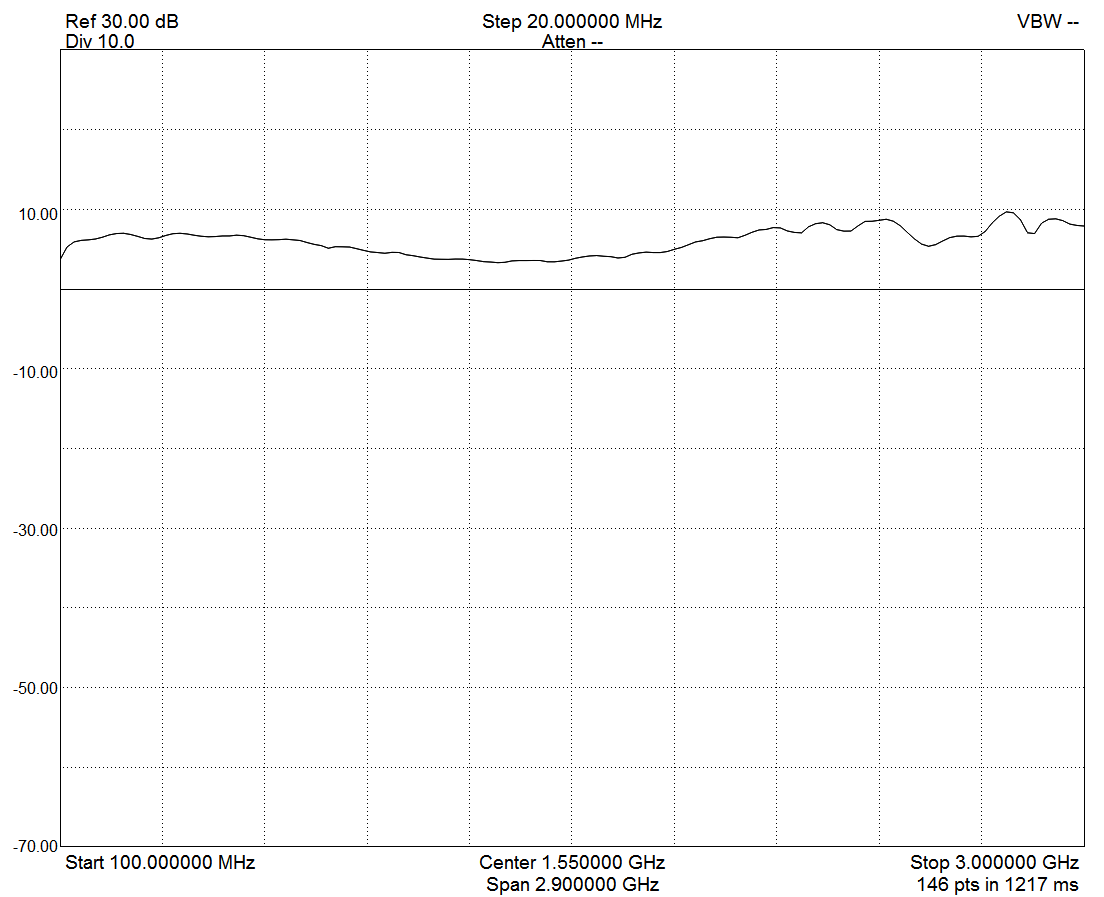

Typical  link frequency amplitude response curve.

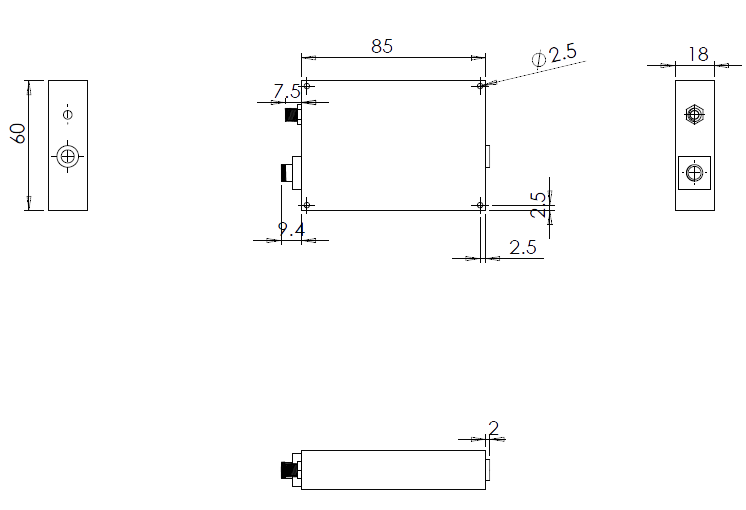

Mechanical Diagram
