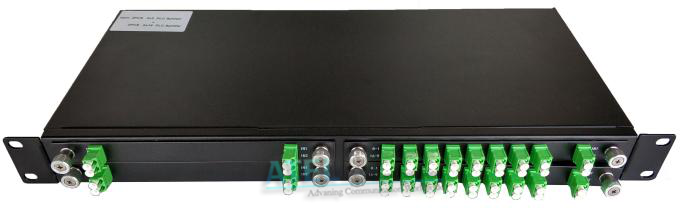

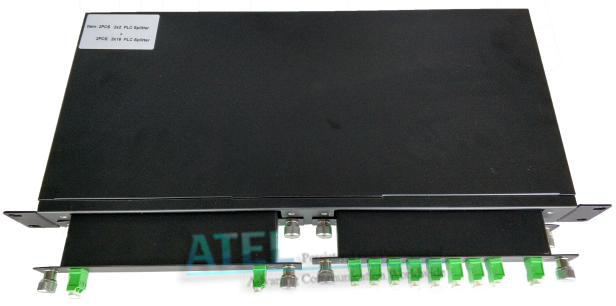

1U PLC Coupler Panel with 4 PLC splitter Cassette
Description 1) Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. 2) It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. 3) ATEL provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. 4) All products meet GR-1209-CORE and GR-1221-CORErequirements.
Key Features
- Low IL &PDL - High reliability &good channel-to-channel uniformity - High-density Cabling - Large operating temperature range& Excellent Environmental
Applications
- FTTX (FTTP, FTTH, FTTN, FTTC) - Local Area Networks (LAN) - Cable television (CATV ) &Passive Optical Networks (PON) - Test Equipment
Specifications 1U panel with 2 units PLC 2*2 cassettes full loaded LC/APC and 2 units PLC 2*16 cassettes full loaded LC/APC
Parameters
2x2
2x16
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1
Insertion Loss (dB)(S/P Grade)
4.8/4.5
14.1/13.8
Loss Uniformity (dB)
0.5
1.2
Return Loss (dB) (S/P Grade)
50/55
50/55
Polarization Dependent Loss(PDL, dB)
0.2
0.3
Directivity (dB)
55
55
Wavelength Dependent Loss(dB)
0.3
0.5
Temperature Stability(-40~85 °C)(dB)
0.5
0.5
Operating Temperature (°C)
-40~85
Storage Temperature (°C)
-40~85
|
||||||||||||||||||||||||||||||||||||
