Fiber Optic Pigtail:

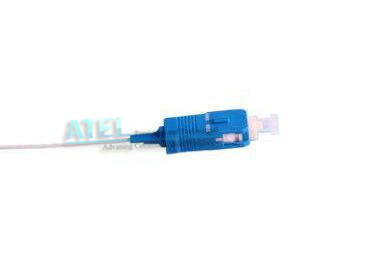

SC-UPC Singlemode Pigtail
Features
* FC 、SC 、ST 、LC Singlemode
and Multimode
* ISO9001,ROHS,UL and IEC standard compatible,
* UPC or 8 degree APC for Singlemode, PC for Multimode
* Cable 0.9mm, 2.0mm, 3.0mm, LSZH or PVC jacket as customer requires.
* Custom order length
* Cable color as international standard, 12 colors.
Application
* Telecommunication
* CATV
* LAN & WAN
* Network
* Broadband,
Parameter
|
Item
|
Mode Type
|
PC
|
SPC
|
UPC
|
APC
|
|
Insertion Loss
|
SM
|
<=0.30dB
|
<=0.25dB
|
<=0.25dB
|
<=0.25dB
|
|
MM
|
<=0.30dB
|
<=0.20dB
|
<=0.20dB
|
<=0.30dB
|
|
Return Loss
|
SM
|
>=45dB
|
>=50dB
|
>=50dB
|
>=60dB
|
|
MM
|
>=35dB
|
>=35dB
|
>=35dB
|
>=35dB
|
|
Repetition Test
|
Additional Loss<=0.1dB,Reture
Loss Variability<5dB
|
|
Temperature Stability(-40℃～85℃)
|
Additional Loss<=0.2dB,Reture
Loss Variability<5dB
|
|
Operating Temperature
|
-40℃～+75℃
|
|
Storage Temperature
|
-40℃～+85℃
|
|
-Option:CableDiameters;0.9,2mm,3mm&others
|
|
|
|
|
-Type: simplex, duplex,
Type: PVC,LSZH,
|
|
|
