Item

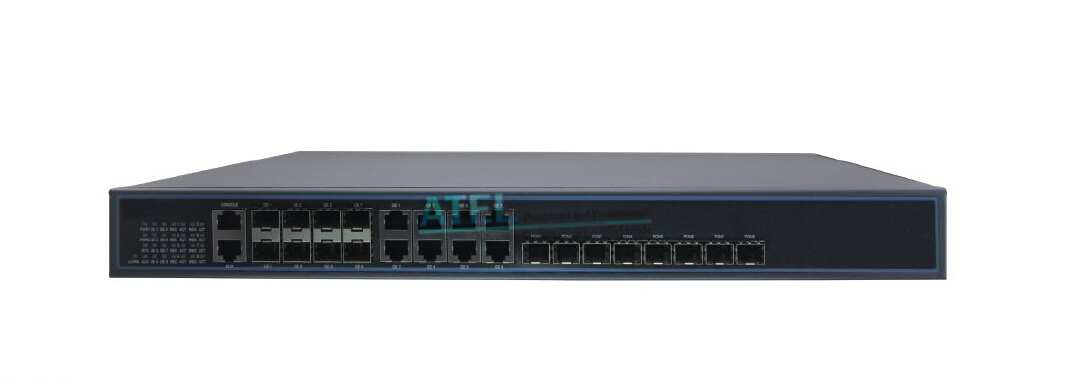

EL5008

Chassis

Rack

1U 19 inch standard box

1000M
Uplink Port

QTY

16

Copper

8*10/100/1000M auto-negotiation

SFP
(independent)

8*SFP Or 4*SFP and SFP+ slots

EPON Port

QTY

8

Physical Interface

SFP Slots

Connector Type

1000BASE-PX20+

Max splitting ratio

1:64

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port Specification

Transmission Distance

20KM

EPON port speed

Symmetrical 1.25Gbps

Wavelength

TX 1490nm, RX 1310nm

Connector

SC/PC

Fiber Type

9/125μm SMF

TX Power

+2~+7dBm

Rx Sensitivity

-27dBm

Saturation Optical Power

-6dBm

Management Mode

SNMP, Telnet and CLI

Management Function

Fan Group Detecting;
Port Status monitoring and configuration management;
Layer2 switch configuration such as VLAN, Trunk,RSTP,IGMP,QOS, etc;
EPON management function: DBA,ONU authorization, ACL,QOS,etc;
Online ONU configuration and management;
User management;
Alarm management.

Layer2 Switch

Support port VLAN and protocol VLAN;
Support 4096 VLANs;
Support VLAN tag/Un-tag ,VLAN transparent transmission, QinQ;
Support IEEE802.3d trunk;
Support RSTP;
QOS based on port,VID,TOS and MAC address;
IGMP Snooping;
IEEE802.x flow control;
Port stability statistic and monitoring.

Layer 3Route

1024 Host Routes;
512 Subnet Routes;
256 IP Multicast Groups;

EPON Function

Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah standard;
Up to 20KM transmission Distance;
Support data encryption, multi-cast, port VLAN, separation,RSTP,etc;
Support Dynamic Bandwidth Allocation (DBA);
Support ONU auto-discovery/link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support various LLID configuration and single LLID configuration;

Different user and different service could provide different QoS by means of different LLID channels;
Support power-off alarm function,easy for link problem detection;
Support broadcasting storm resistance function;
Support port isolation between different ports;
Support ACL and SNMP to configure data packet filter flexibly;
Specialized design for system breakdown prevention to maintain stable system;
Support dynamic distance calculation on EMS online;
Support RSTP,IGMP Proxy.

Dimension(L*W*H)

442mm*320mm*43.6mm

Weight

4.5kg

Power Supply

220VAC

Double Hot Backup

Power Consumption

45W

Operating Environment

Working Temperature

-10~+55℃

Storage Temperature

-40~+85℃

Relative Humidity

5~90%(non-conditioning)
