12-24 Splice Cassette Spechs

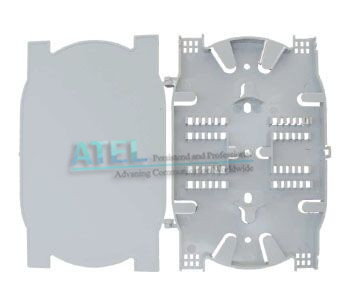

                12 Fiber Cores Splice Cassette                                                         24 Fiber Cores Splice Cassette (curve)

Description:

Fiber optic splice trays are designed to provide a location to store and to protect the fiber cables and the splices.

Fiber optic splice trays are used as an important accessory for fiber cable management items. Such as fiber optic terminal box, fiber optic splice closure, FTTH terminal box, cabinet, etc. Splice tray expands fiber splice capabilities. Each tray provides space for mounting fiber splice protectors and excess fiber. The cables are left in the splice tray. The splice tray offers a unique and flexible splice and storage system.

Characteristics:

-Size: 155*93*10mm

-Net weight: 65g

-Material: ABS, PC

-White color and grey color optional

-Sealing performance: Remain unchanged for 72 hours on pressure 70kpa

-Ambient temperature: -40°C+55°C

-Atmospheric pressure environment: 70kpa-106kpa

-Tensile strength: ›1000N

-Compressive strength: with stand 2000N/10Cm2 in 1min

-Max volume: 24 cores

Feature：

-Clear and smart design

-Easy to installation

-Flame retardant, high strength, long anti-aging time

-Excellence in fiber protection

-Durable injection-molded plastic trays and covers

-Center holes for mounting of the tray

-Use for single-mode or multimode fiber

-12-fiber and 24-fiber splice trays installable in Wall Mount enclosures & splice closures

-Cover can be turned, capacity plate can be superimposed, had large capacity

Applications:

-Used for welding and branching of optical fibers

-Optical distribution frame

-Fiber optic terminal box and FTTH terminal box

-Fiber Optical Splice Closure

-Splicing fibers
