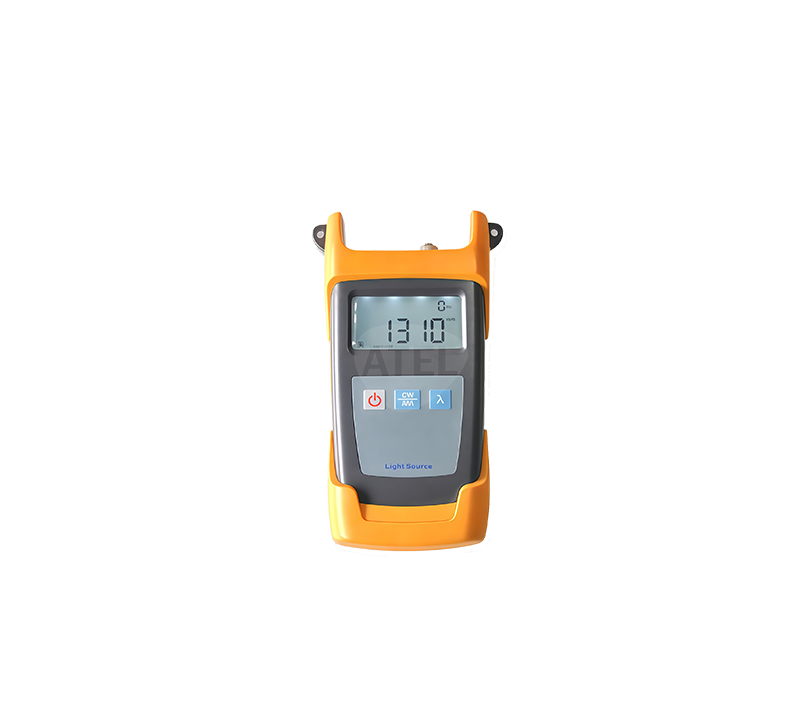

Optical Light Source (Handheld)

Description

Ther AT3111 optical light source is a handheld optical light source. It can provide 1 to 5 wavelengths output to satisfy specific requirements including the 650nm visible light source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer’s needs. Together with the AT3211 optical power meter, it is a perfect solution for fiber optic network applications

Features

Provides 1~5 wavelengths output which can be optional according to customers’ needs；

CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths；

High stability of the output power；

Stable output wavelength；

Backlight LCD display supports night operation；

Low battery power indication；

Specification

Wavelengths (nm)	Provides 1~5 Wavelengths according to needs.
Emitter Type	FP-LD, LED
Typical Output	0@650nm / -7@1310nm,1550nm, -20dBm for LED
Spectral Width (nm)	≤10
Output Stability	±0.05dB/15mins; ±0.1dB/ 8hours
Modulation Frequencies	CW. 2Hz@650nm / CW, 270Hz, 1KHz, 2KHz@1310nm,1550nm
Optical Connector	FC/PC (Other type adapters can be required)
Power Supply	Alkaline Battery (3×AA 1.5V batteries); AC Adaptor (9V)
Battery Operating Time	45hours
Operating Temperature	-10℃~+60℃
Storage Temperature	-25℃~+70℃
Dimension	190mm×100mm×50mm
Weight	370g
