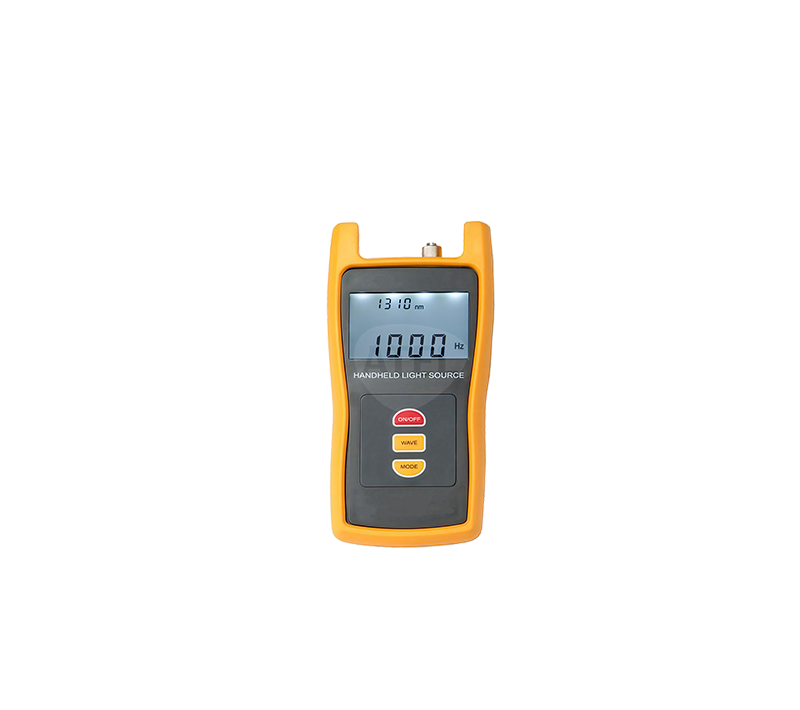

Optical Light Source（Handheld）

Features

Provides 1~4 output wavelengths which can be optional according to customer’s needs;

CW, 2Hz modulation output at 650nm, and CW, 270Hz, 1 KHz, 2 KHz modulation output at other wavelengths;

High stability of the output power;

Stable output wavelength;

Backlight LCD display supports night operation;

Compact size and decent appearance;

Large LCD, easy operation;

Alternative 10 minutes Auto-off function conserving battery life;

Wavelengths(nm)	650nm	1310/1550nm	850/1300nm	850/1300/1310/1550nm
Emitter Type	FP-LD, LED or others please specify
Typical Output Power (dBm)	0	-7dBm for LD, -20dBm for LED
Spectral Width (nm)	≤10 nm
Output Stability	±0.05dB/15mins; ±0.1dB/8hours
Modulation Frequencies	CW, 2Hz	CW, 270Hz, 1KHz, 2KHz
Optical Connector	FC/universal adaptor	FC/PC
Power Supply	Alkaline Battery (3×AA 1.5V batteries)
Battery Operating Time	45hour
Operating Temperature	-10℃~+60℃
Storage Temperature	-25℃~+70℃
Dimension	175mm×82mm×33mm
Weight	295g
