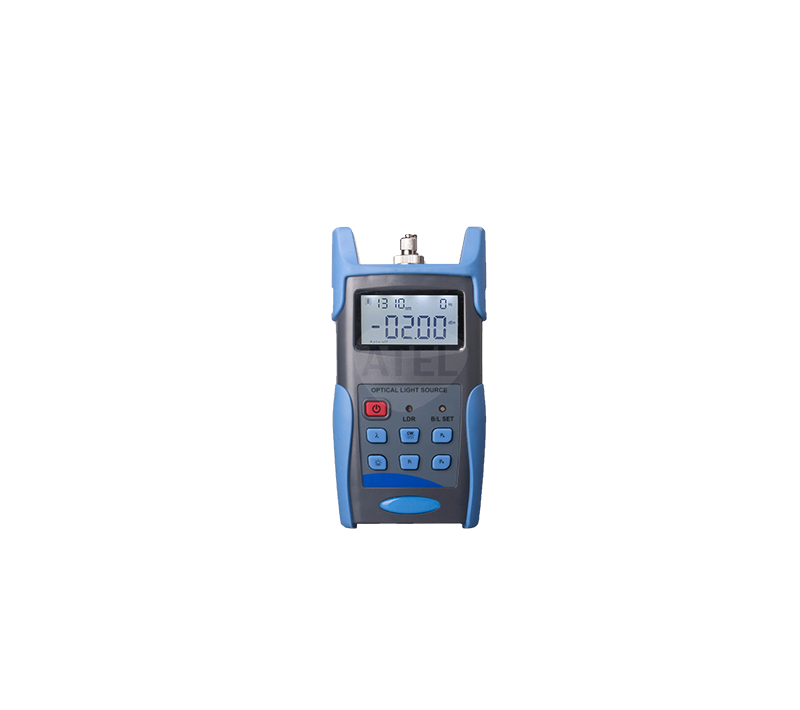

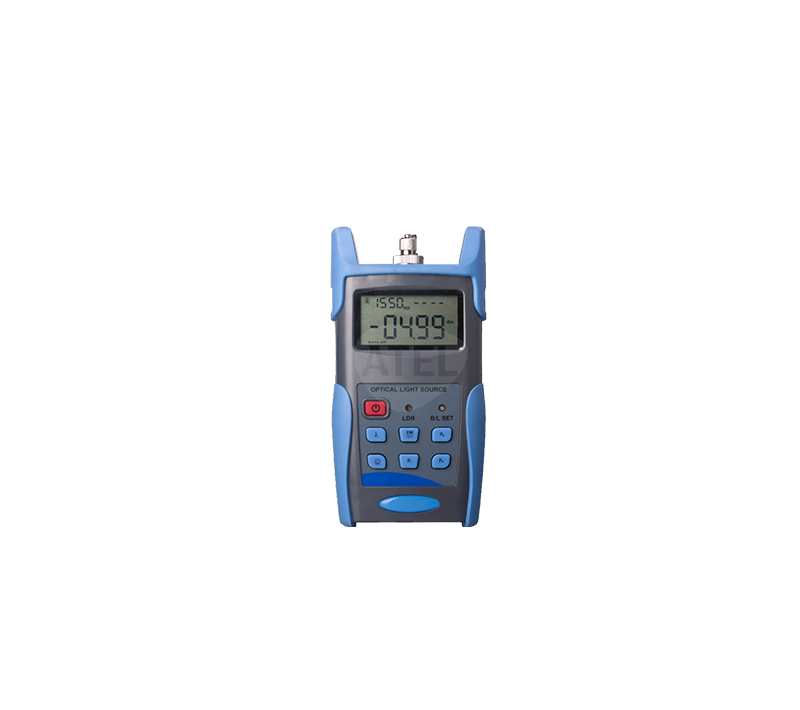

Optical Light Source（Handheld Adjustable）

AT3116

Description

The AT3116 Handheld Adjustable Light Source is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with AT3216 handheld optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers. The AT3116 provides 1 to 4 wavelengths and output power can be adjustable on customer requests. Also the AT3116 features good appearance, good touch feeling and considerate humanity design.

Features

Wave ID information can be transmitted when used with AT3216 Optical Power Meter;

Tone generation, 270Hz, 330Hz, 1KHz, and 2KHz;

Output power can be adjustable;

Output power value is shown on LCD display;

Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption);

AA alkaline and AC adapter for power supply;

Low battery indication;

Specification

Operating wavelength	1310/1550;1310/1490/1550/1625nm（others specify on requests）
Applicable fiber	SM, MM
Laser type	FP-LD (others specify on requests)
Output Power	-5dBm ~ -12dBm（can be adjustable）
Adjustable step size	＜0.5dBm
Stability (dB, 30min, 20℃)	0.15
Modulation（Hz）	CW，270Hz，330Hz，1KHz，2KHz
Fiber Port	FC/PC
Alkaline Battery	3×AA，1.5V
Power Supply Adaptor	8.4V
Battery Operating time	45h
Operation Temperature	-10℃～+60℃
Storage Temperature	-25℃～+70℃
Outline size	180mm×90mm×45mm
Weight	250g
