CWDM Optical Power Meter

Description

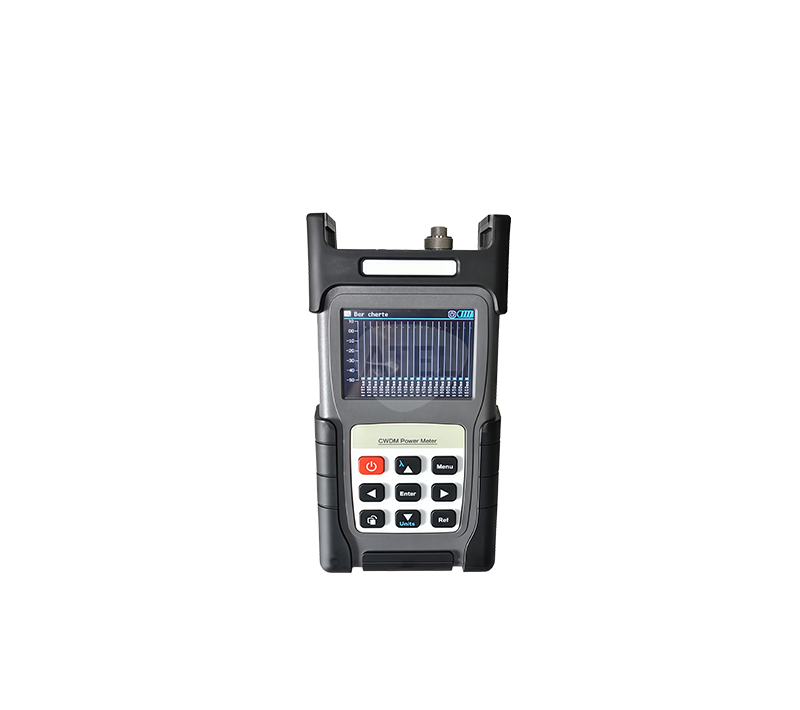

The AT3226A CWDM Power Meter is specially designed for CWDM system, covering wavelength from 1270~1610nm. It measures and monitors optical power and attenuation value of 18 channels from wavelength 1270nm to 1610nm wavelength. All calibrated wavelengths will be tested simultaneously and all test results will show in the LCD screen. This CWDM power meter features simple operation, quick response and high measurement accuracy which make it an ideal tester in CWDM system installation and maintenance.

Features

Simultaneously test and show 18 wavelengths;

Friendly interface and easy operation;

Save and upload test results via USB port;

1000 records;

Columnar graphics or list mode to show test data;

Color TFT-LCD display, high resolution 320×240;

Built-in clock and can edit test fiber number;

Quick start operation, requiring no warm-up time;

Light weight;

Wavelength Range	1270nm ~ 1610nm
Number of Channels	18 CH
Wavelength Resolution	20 nm
Measuring Wavelength (nm)	1270/1290/1310/1330/1350/1370/1390/1410/1430 1450/1470/1490/1510/1530/1550/1570/1590/1610
Dynamic Range	+10dBm ~ -40dBm
Resolution	0.01dB
Optical Interface	FC/PCF (FC, LC, ST available)
Operating Temperature	-10℃ ~ +60℃
Power Supply	Rechargeable battery / AC power adapter
Time of Operating	10h
Dimension	220cm × 110cm × 70cm
Weight	850g
