Optical Fiber Identifier

Description

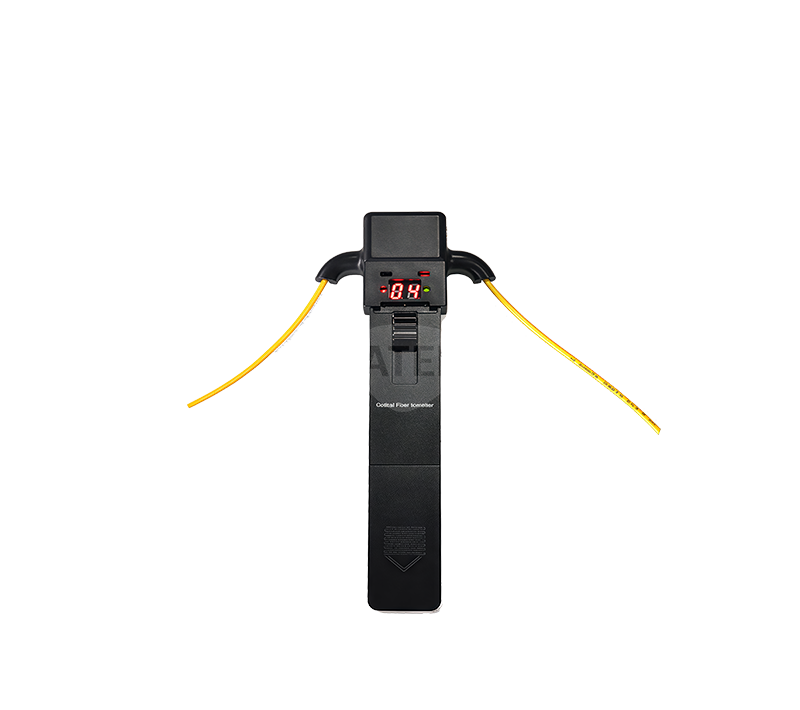

Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.

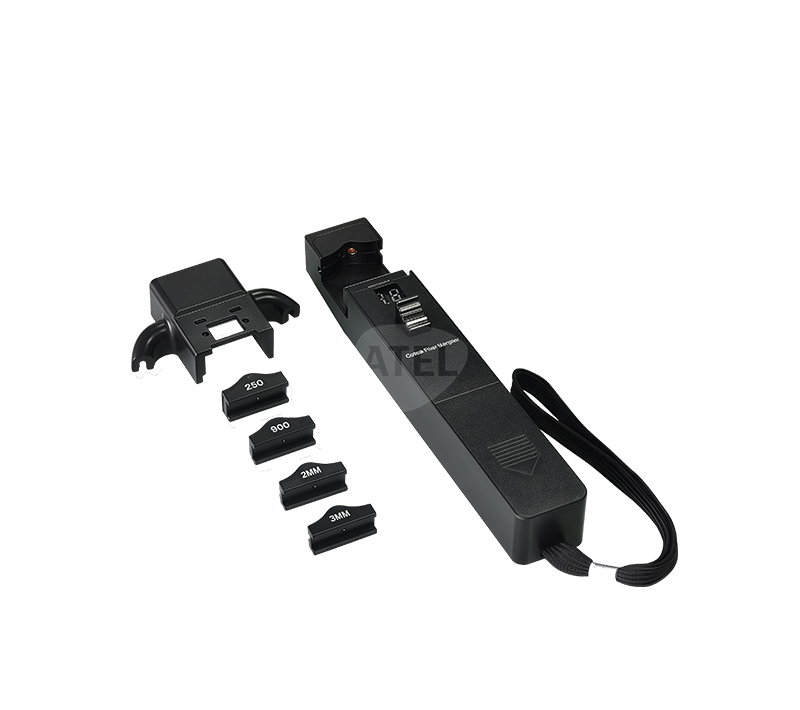

The AT3306B optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0.

Features

Easy-to-use with “ONE KEY” operation;

Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning;

Displays the relative core power;

More accurate test with Sunshade;

Easy-to-replace adaptors ;

Durable metal housing and quality construction;

Lower power indication;

Specification

Identified Wavelength Range	800nm ~ 1700nm
Identified Signal Type	CW，270Hz±5%，1KHz±5%，2KHz±5%
Detector Type	Ø1mm InGaAs 2pcs
Adapter Type	Ø0.25 (Applicable for Bare Fiber), Ø0.9 (Applicable for Ø0.9 Cable)
	Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable)
Signal Direction	Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)	-46dBm ~ +10dBm (1310nm) -50dBm ~ +10dBm (1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber)	-50dBm ~ +10dBm
Signal Frequency Display	270Hz, 1KHz, 2KHz
Frequency Test Range (dBm, Average Value)	Ø0.9, Ø2.0, Ø3.0	-30~0 (270Hz,1KHz) -25~0 (2KHz)
	Ø0.25	-25~0 (270Hz,1KHz) -20~0 (2KHz)
Insertion Loss (dB, Typical Value)	0.8 (1310nm) 2.5 (1550nm)
Alkaline Battery	9V
Operating Temperature	-10℃ ~ +60℃
Storage Temperature	-25℃ ~ +70℃
Dimension	196mm×30.5mm×27mm
Weight	200g
