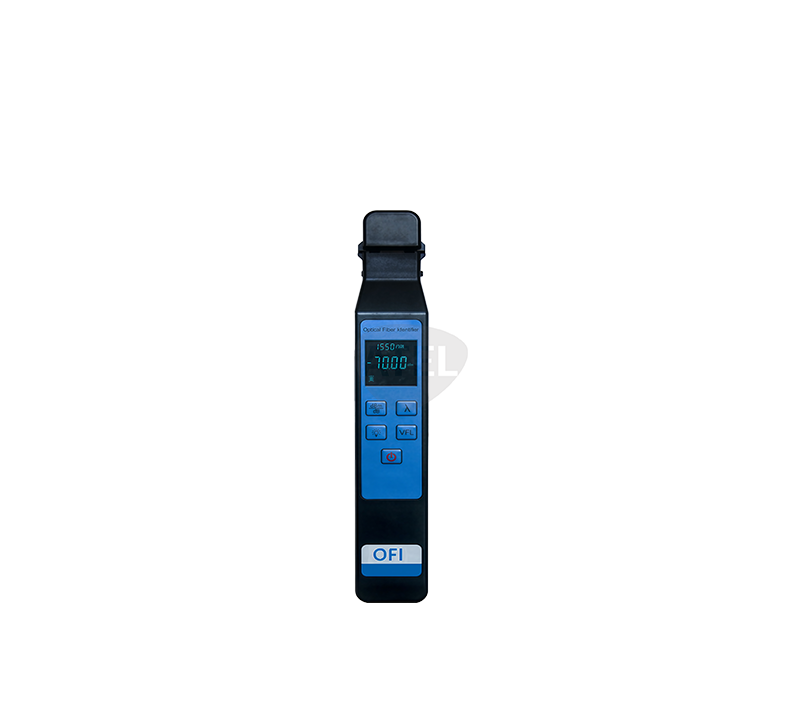

Optical Fiber Identifier

Description

Optical fiber identification instrument is a new comprehensive test instrument newly developed by our company, which not only has the function of conventional fiber optic identification instrument to carry out nondestructive fiber optic identification detection work in any position of single-mode and multimode fiber, but also has the optical power module and red light visual fault location function necessary for fiber optic link construction and maintenance detection, which is a high-performance tester in current fiber optic network maintenance detection.

Features

Color screen display;

Metal structure 4-in-1 test fixture (can detect 250/900um and 2 to 3mm of various optical fibers);

With online test to identify power direction, frequency detection function;

Low insertion loss, test dynamic range;

With ordinary power meter function (including frequency detection);

With VFL function;

Low battery prompt;

Specification

Wavelength range	800nm～1700nm
Probe type	InGaAs
Adapter type	250um/900um/2mm/3mm
Modulation frequency	CWHz/270Hz/1KHz/2KHz
Optical fiber signal display detection range	+13dBm～-50dBm
Signal direction detection range（Typical Value)	+13dBm～-35dBm
Signal frequency indication	270Hz/1KHz/2KHz
Signal frequency detection range (Typical Value)	+13dBm～-30dBm
Display screen	Color-LCD
Power supply	2×1.5V AA battery
Operating temperature	-20℃～+60℃
Storage temperature	-30℃～+70℃
Dimension	220mm×38mm×28mm
Weight	145g

VFL；

Wavelength	650nm ±10nm
Output power	≥10mW
Test interface	Φ2.5mm universal interface

OPM；

Test wavelength	850nm/1300nm/1310nm/1490nm/1550nm/1625nm
Power test range	+26dBm～-50dBm
Unit	dBm、dB、xW
Resolution ratio	0.01dB
Uncertainty	≤0.5dB
Test interface	Φ2.5mm universal interface
