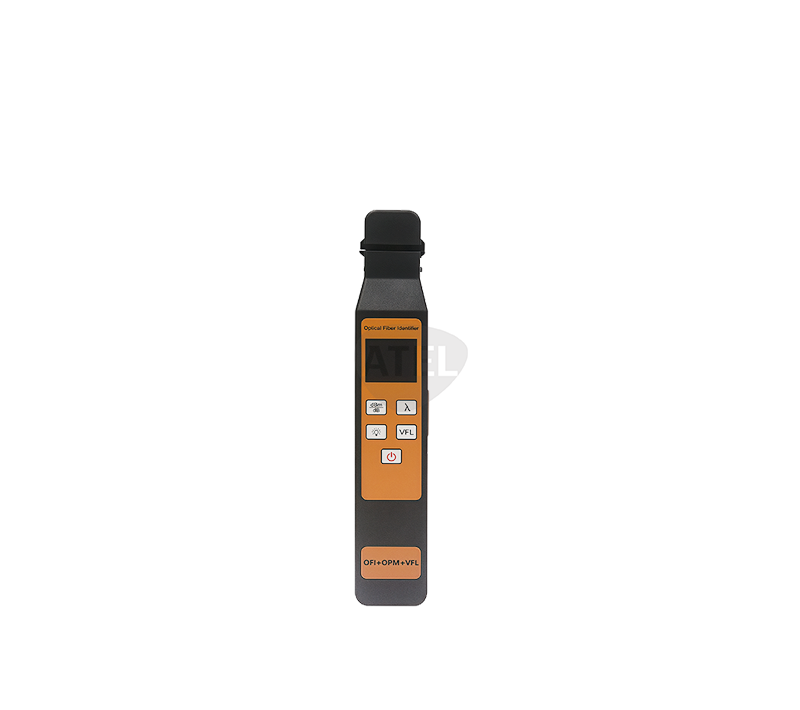

Optical Fiber Identifier

Description

Optical Fiber Identifier is an important tool for optical maintenance, which is used for non-destructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function and power meter function.
Using the macro bending technology on line for non-destructive testing, It can measure the signal directionand power and avoid mis-operation resulting in interrupted lines.
Macro bending measurement. Macro bends are the use of fiber-optic bending leak out when the weak optical signal, optical signal to detect the direction and intensity.

Features

Build in 10mW VFL function;

Build in OPM;

Metal gripper, no need to change the adapter;

Low battery monitoring function;

Tone identification, Optical Fiber Identifier can detect optical signals in the tone signal;

Fixed load, 270Hz, 1KHz and 2KHz, to identify a specific optical fiber, can quickly find necessary fiber;

Does not damage optical fiber, without interrupting communications, and direct detection of 2.5mm bare fiber, 0.9mm and 2.5mm fiber casing tight jumper;

Specification

Wavelength	800nm-1700nm
Pass through insertion loss	250um / 900um optical fiber	1.0 dB
	2.0 / 3.0 mm optical fiber	1.5 dB
Application of optical fiber	250um/900um/2mm/3mm optical fiber
ldentified Signal Type	270Hz/1KHz/2KHz
ldentification of modulated signals	Yes
Power Measurement	Yes
Display	LED color screen
Tone	Yes
Low power monitoring	Yes
Detector type	300um InGaAs

VFL;

Wavelength	650nm±10nm
Output Power	10 mW
Fiber Port	Φ2.5 universal connector

OPM;

Wavelength	800nm ~ 1700nm
Calibration certificate	850/1300/1310/1490/1550/1625nm
Measurement range	-50dBm ~ +26dBm
Connector type	Φ2.5 universal connector
Power supply	2×AA 1.5V Alkaline Battery
Operation Temperature	-10℃ ~+50℃
Storage Temperature	-20℃ ~+70℃
Outline size	230mm × 43mm × 36mm
Weight	200g
