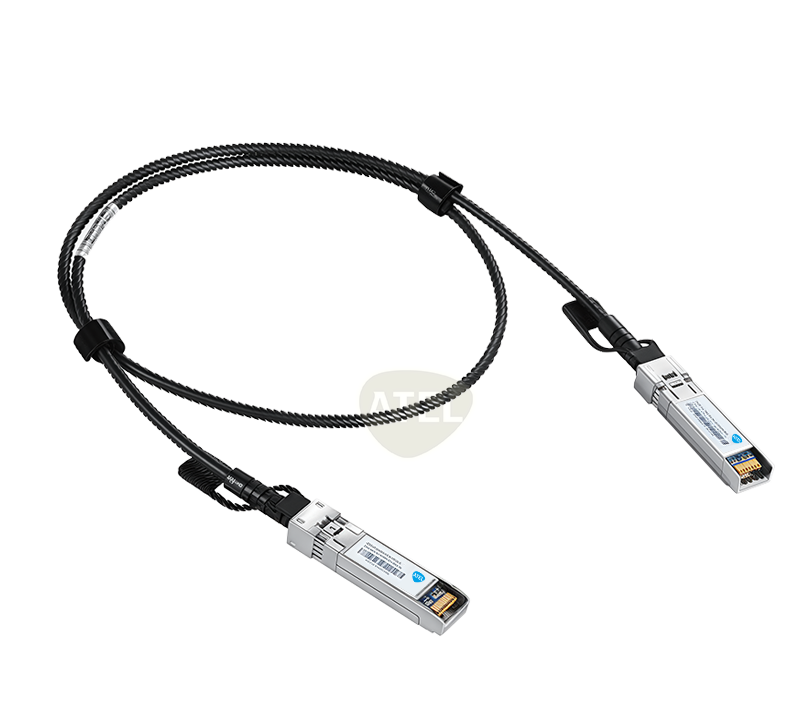

10G SFP+ DAC

10GBase SFP+ DAC
Contact Us

Description

The SFP+ DAC are high speed, cost-effective alternative to fiber optics solution in 10Gb Ethernet, 8GbFiber channel and Infiniband applications. SFP+ DAC enable hardware OEM and data center operators to achieve high port density at low cost and reduced power requirement. The SFP+ DAC meets the industry MSA for signal integrity performance, can also customize based on special require.

Features

MSA SFF-8431 compliant;
Supports serials data rates up to 10Gbps;
Hot pluggable;
High cost-effective to Fiber optics solution;
Low power consumption;
Enhanced EMl suppression
Differential impedance 100ohm

Applications

Switches, Severs, Routers and Hub;
Enterprise storage;

Specification

Protocol:

10G Ethernet(IEEE802.3ae)

1/2/4/8G FC Fiber channel

lnfiniband: SDR(2.5Gbps), DDR(5Gbps), QDR(10Gbps)


Length (m)

Cable AWG
Remark
130 AWG
Passive
230 AWGPassive
330 AWGPassive
5
24 AWGPassive
724 AWGPassive



Consult
