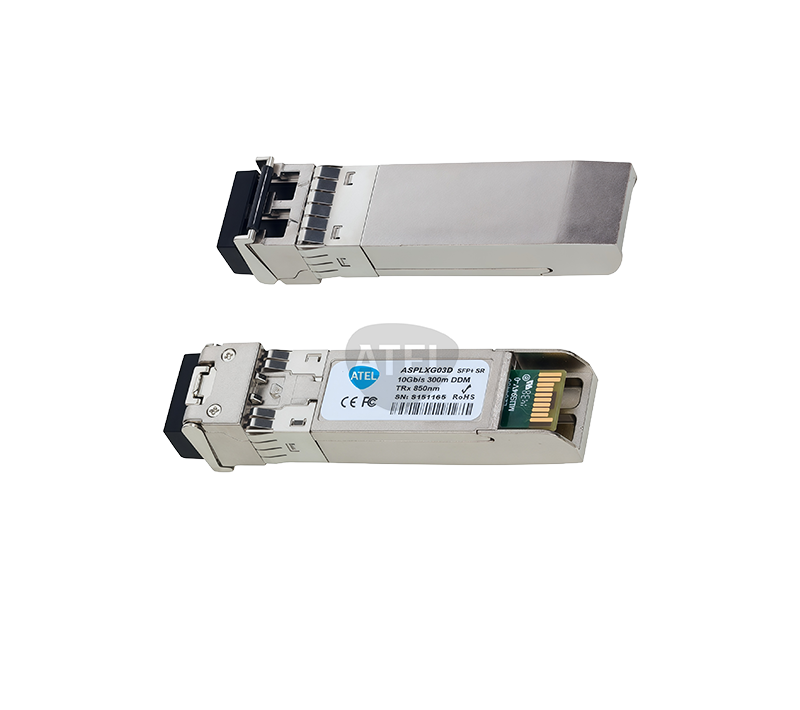

8.5Gbps 300m SFP+ Transceiver

Hot Pluggable, Duplex LC, +3.3V, 850nm VCSEL, Multi mode

ASPLXG03D SFP+ SR

Description

It is a very compact 8.5Gb/s optical transceiver module for serial optical communication applications at 8.5Gb/s. The module converts a 8.5Gb/s serial electrical data stream to 8.5Gb/s optical output signal and a 8.5Gb/s optical input signal to 8.5Gb/s serial electrical data streams. The high speed 8.5Gb/s electrical interface is fully compliant with SFI specification.
The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 300m links.
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 8.5GBASE. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.t is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The module converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.

Features

Up to 8.5 Gb/s bi-directional data links;

Electrical interface compliant to SFF-8431 specifications for small form factor pluggable module “SFP+” ;

850nm VCSEL transmitter, PIN photo-detector;

2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers;

Operating case temperature: 0 to 70°C;

All-metal housing for superior EMI performance;

Low power consumption;

Advanced firmware allow customer system encryption information to be stored in transceiver;

Cost effective SFP+ solution, enables higher port densities and greater bandwidth;

RoHS compliant;
