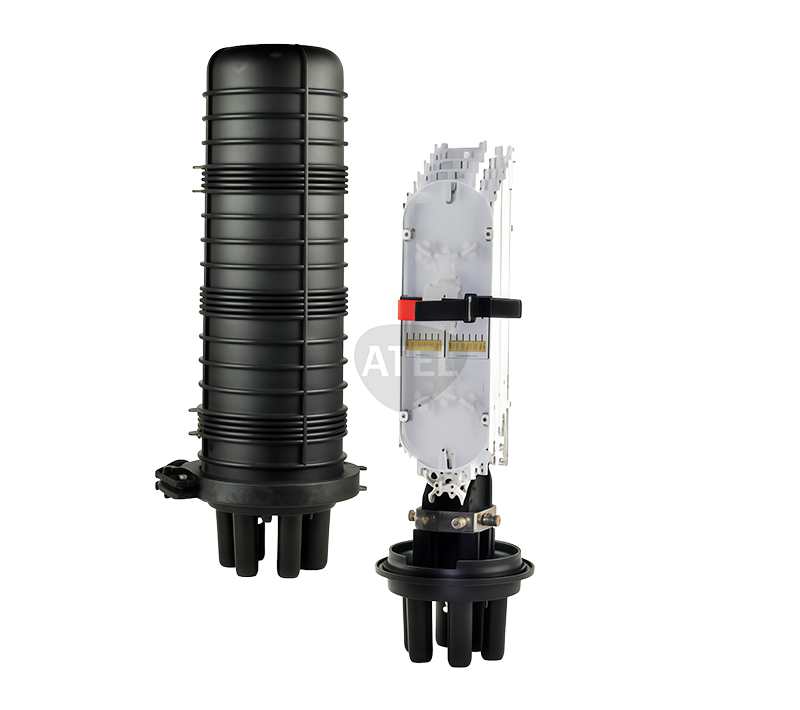

Fiber Dome Closure

Fiber Dome Closure

Up to 96 fibers ADC004
Contact Us

Description

The optical fiber closure is a containment device for the optical fiber fusion splicing and connection segment system. It is widely used in optical fiber connections, serving the functions of sealing, protecting, installing optical connector heads, and storing.

Features

Easy to re-enter
Cable entry/exit ports
Pressure testing valve and earth deriving device
Intergrated seal, air tight and water proof
Ideal for cable repair
Can be used in through, branch or mid span splice locations
Suitable for aerial, underground duct or direct burial applications
Pressure testing valve and earth deriving device optional.

Applications

Telecommunications (FTTX/FTTH/FTTB)
Carrier Networks and fiber optic networks
CATV environment
Be suitable for Aerial and Duct

Specification


Item
Parameters
Sealing StructureHeat-shrinkable sealing and Mechanical seal
Cores Range24-96 cores
MaterialPP
Size D×H (mm) φ205×540mm
Cable ports5 ports
Cable DiameterMax φ38
Max. Capacity (bunchy fiber)96 cores
Core capacity per tray24
Holds up to 96 fibers
