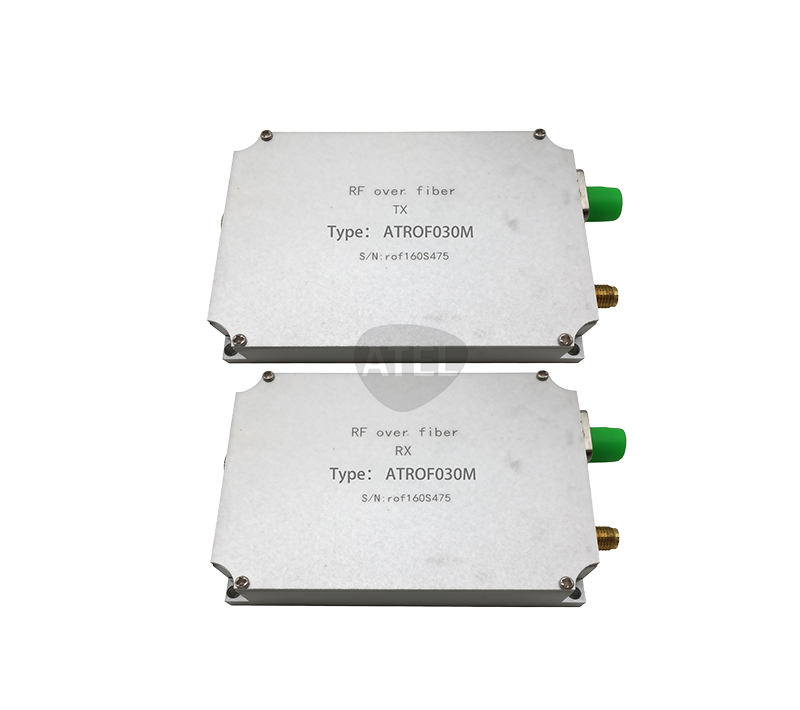

ATROF030M-Tx : Transmitter module
ATROF030M-RX : Receiver module
Frequency range : 200 – 3000 MHz
Optical connector: SC/APC or FC/APC are available according to customer needs
RF connectorL: SMA
| Parameters | Unit | Typical Value |
| Frequency Range | MHz | 200 – 3000 |
| Average Gain | dB | >0 |
| Flatness | dB | ≤ ±3.5 |
| Input 1dB Compression | dBm | ≥ -5 |
| VSWR | N/A | ≤ 2:1 |
| Max Input not Damage RF Power | dBm | 10 |
| Noise Floor | dBm | ≤120@1Hz BW |
| Input/output Impedance | Ohm | 50 |
| Power Supply | VDC | 6~12V |
| Power Consumption | W | <2 |
| Transmitter Wavelength | nm | 1310/1550 |
| Transmitter Optical Power | dBm | >0 |
| Receiver Working Wavelength Range | nm | 1100~1650 |
| Optical Connector | N/A | FC/APC |
| RF connector | N/A | SMA |
| Dimension | mm | 85×60×18 |
| Environment | ||
| Operation Temperature Range | ℃ | -40 to 60 |
| Storage Temperature | ℃ | -55 to 85 |
| Vibration | Per MIL STD-8108B Method 514 -5 | |
