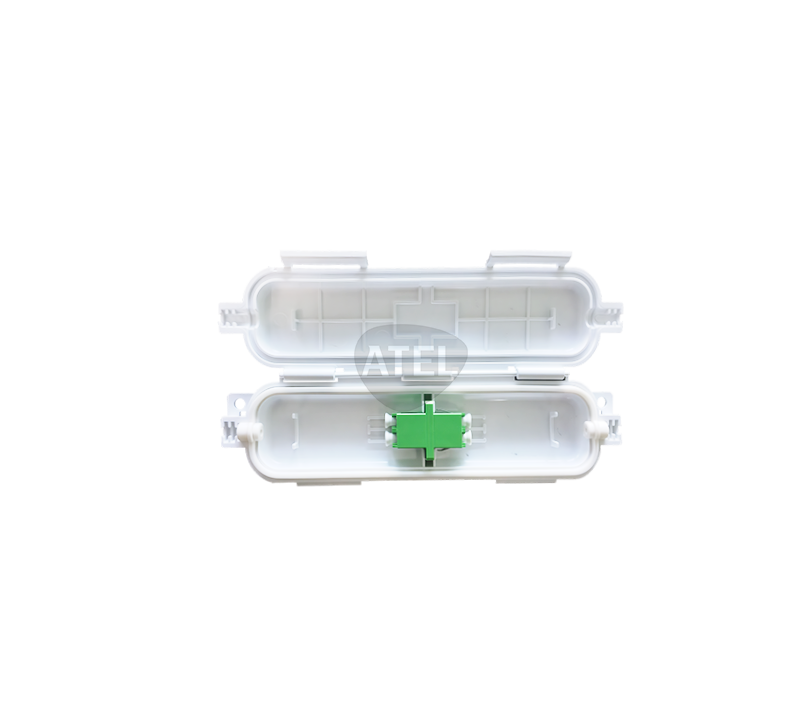

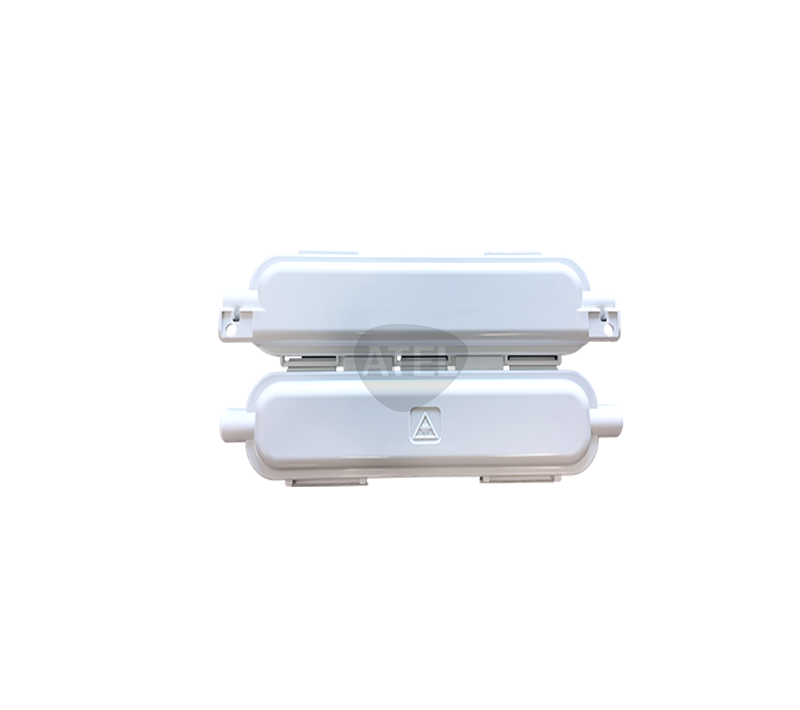

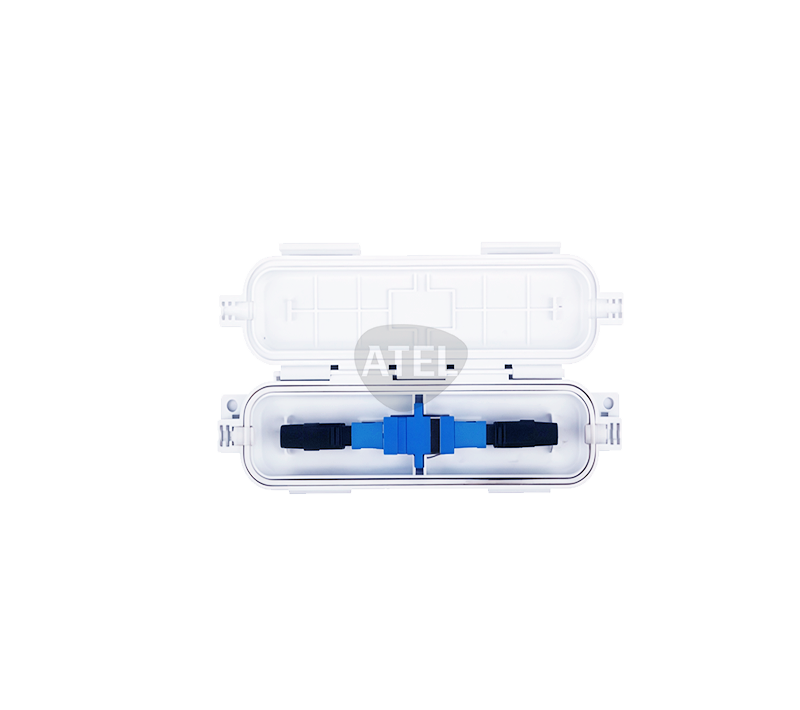

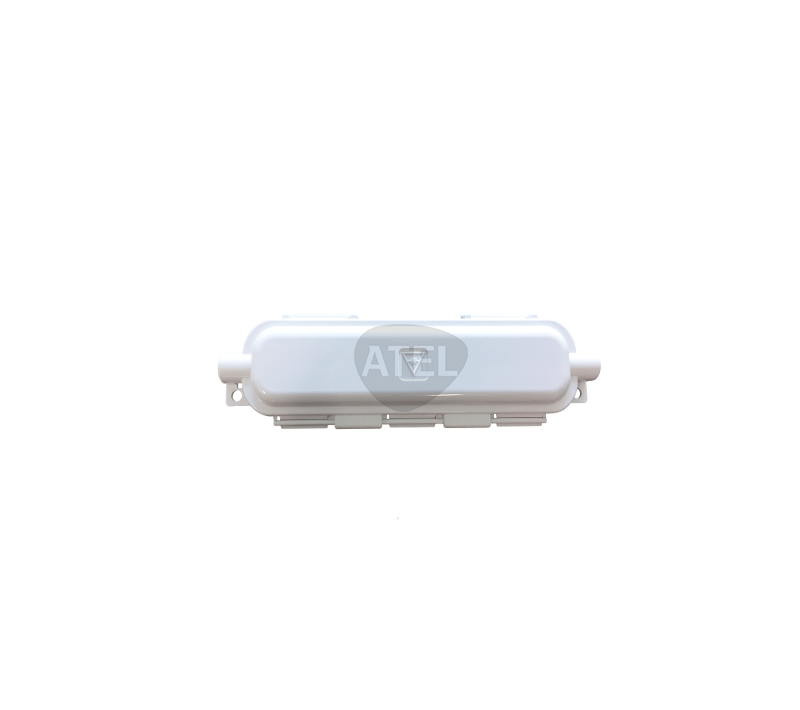

1 Port Fiber Optic Junction Box

1 Port Fiber Optic Junction Box

ATB-1A
Contact Us

Description

This box is used as a temination point for the feeder cable to connect with cable in FTTX communication network system. It integrates fiber splicing, splitting,distribution, storage and cable connection in one uni.Meanwhile, it provides solid protection and management for the FTTX network building

Features

1. Suitable for many types of modules, used in cabling work area subsystem;
2. Embedded type surface,easy for installation and removal;
3. Available for fiber optic SC simplex or LC duplex and can be used in both surface mounted installation and concealed panel installation;

Applications

Optical fiber communication system;
Fiber optical CATV,FTTH
Optical fiber access network;
Testing instruments, fiber optical sensors;
Fiber optic patch panels, cabinet type or wall-mounted type fiber optic distribution units;

Specification

IP Rating- IP54 aerial use (sealing mechanism=rubber grommets)

Locking mechanism- plastic latches

Fixing mechanism - attached to wall through screws


Cable compatibility- max dimensions:

Round cable:3 mm

Flat cable:4mm x 3 mm

Alication- repair demaged drop cable at eaves of customer premises by attachingFIELD Connectors

Capacity-accomodates 2 X SC/APC connectors

Indicative dimensions - 160mm x 45mm x 17mm
