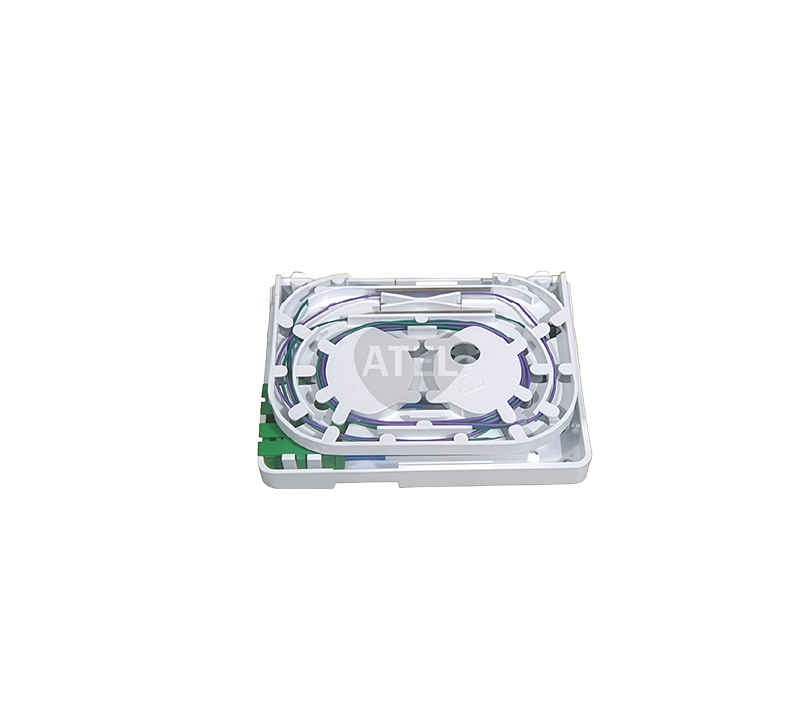

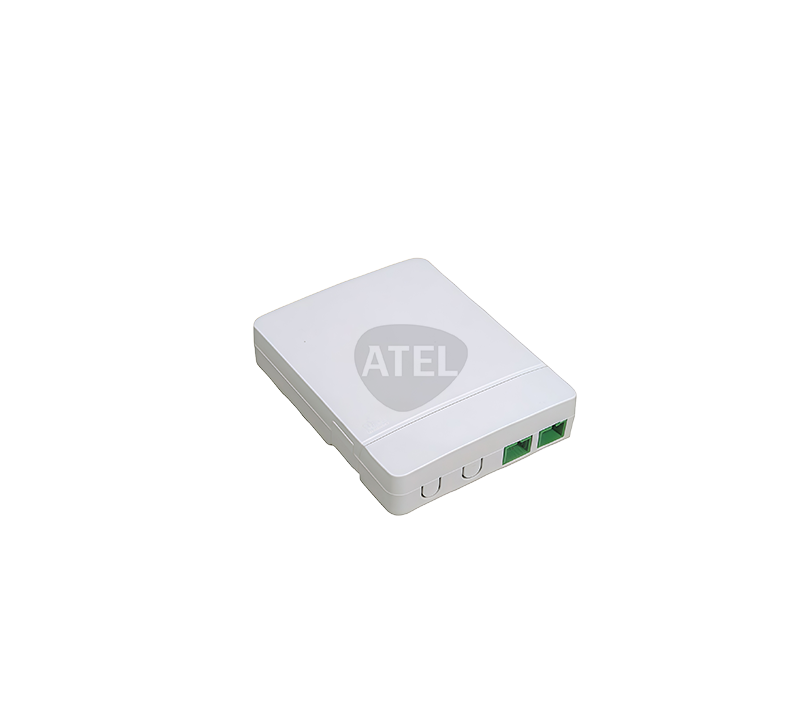

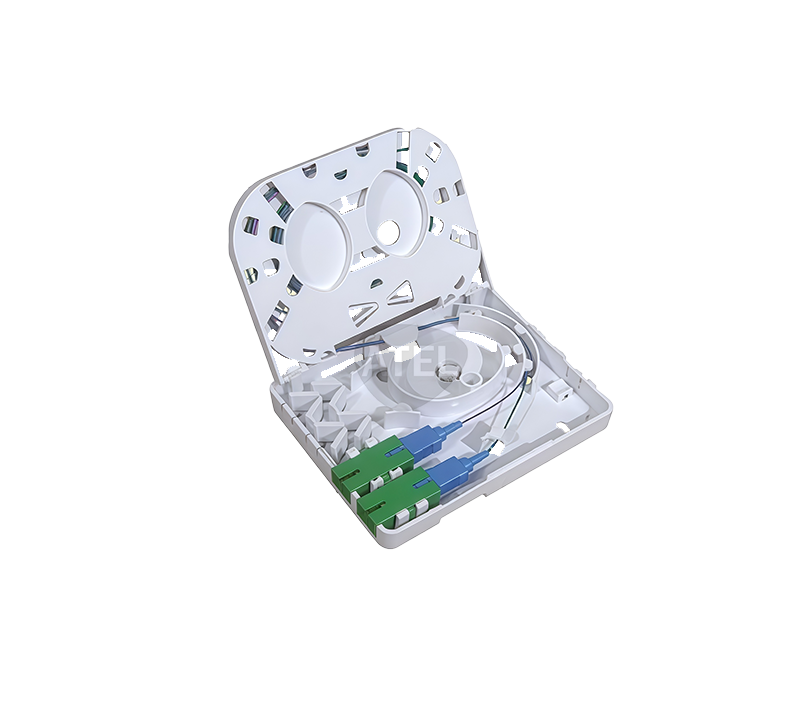

2 Ports FO Termination Box

2 Ports FO Termination Box

ATB-2F
Contact Us

Description

This box is used as a temination point for the feeder cable to connect with cable in FTTX communication network system. It integrates fiber splicing, splitting,distribution, storage and cable connection in one uni.Meanwhile, it provides solid protection and management for the FTTX network building

Features

1. Suitable for many types of modules, used in cabling work area subsystem
2. Embedded type surface,easy for installation and removal
3. Available for fiber optic SC simplex or LC duplex and can be used in both surface mounted installation and concealed panel installation

Applications

Optical fiber communication system;
Fiber optical CATV,FTTH Fiber to the Home;
Optical fiber access network;
Testing instruments, fiber optical sensors;
Fiber optic patch panels, cabinet type or wall-mounted type fiber optic distribution units;

Specification

ItemParameters
Scope of application3.0×2.0 mm drop cable or indoor cable
Fiber cladding diameter125 μm (G652 & G657)
TBF diameter250 μm & 900 μm
Applicable modeSinglemode & Multimode
Tensile strength>50N
Operating temperature-40 ℃ ~ +70 ℃
AdapterSC & LC
Insertion loss

≤0.2dB（1310nm & 1550nm）

Installation methodWall mounted (indoor)
Dimensions（L×W×H）105×82.5×22.5 mm
