Description

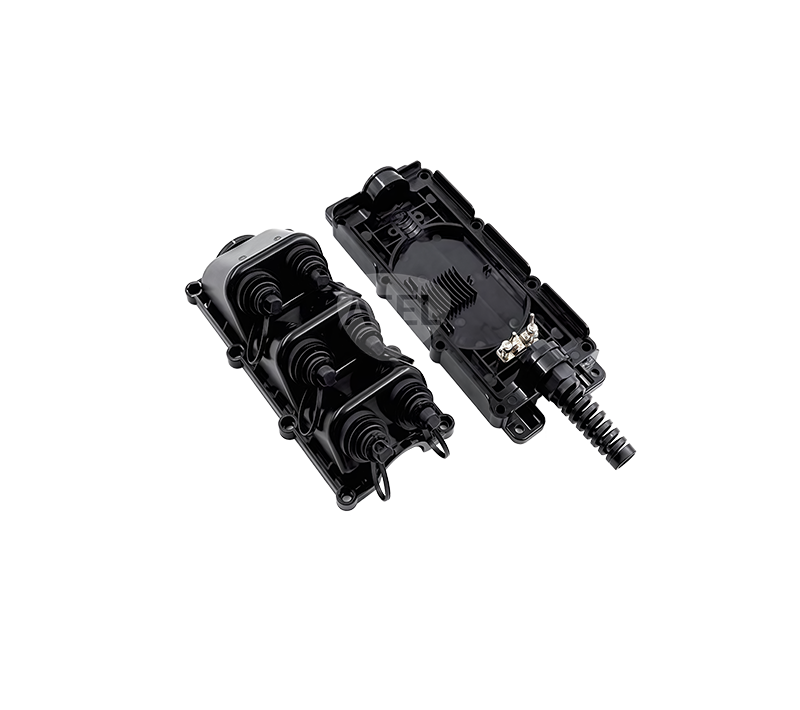

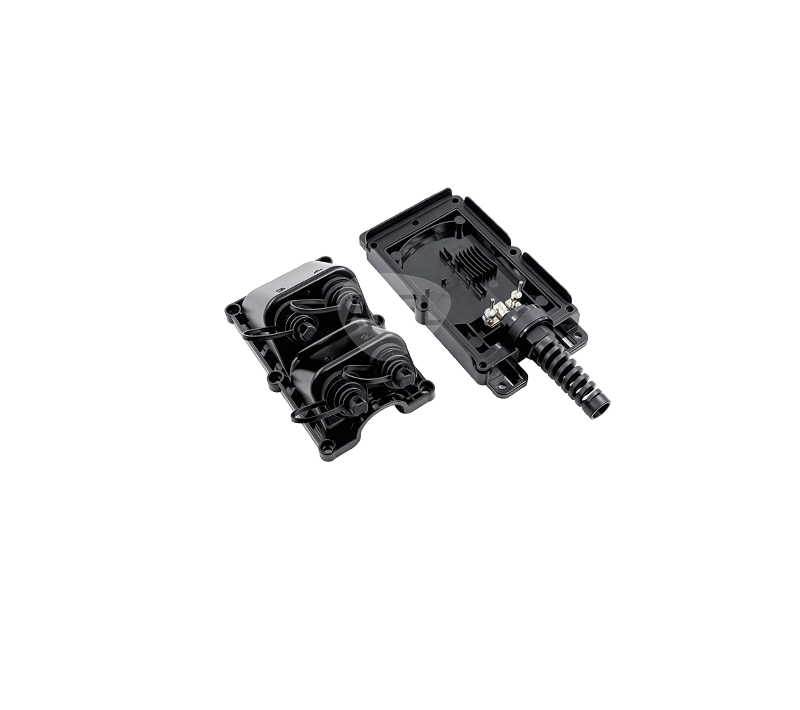

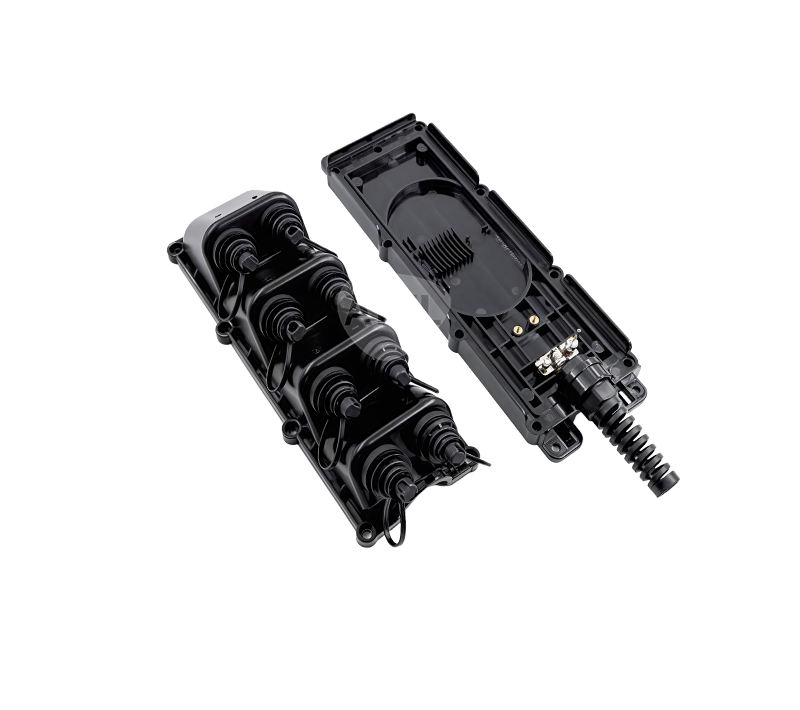

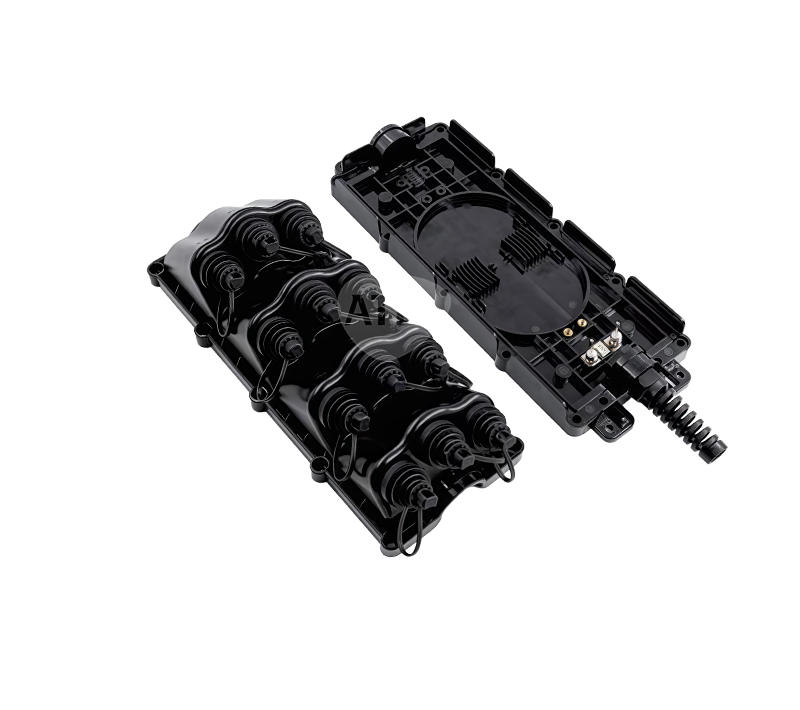

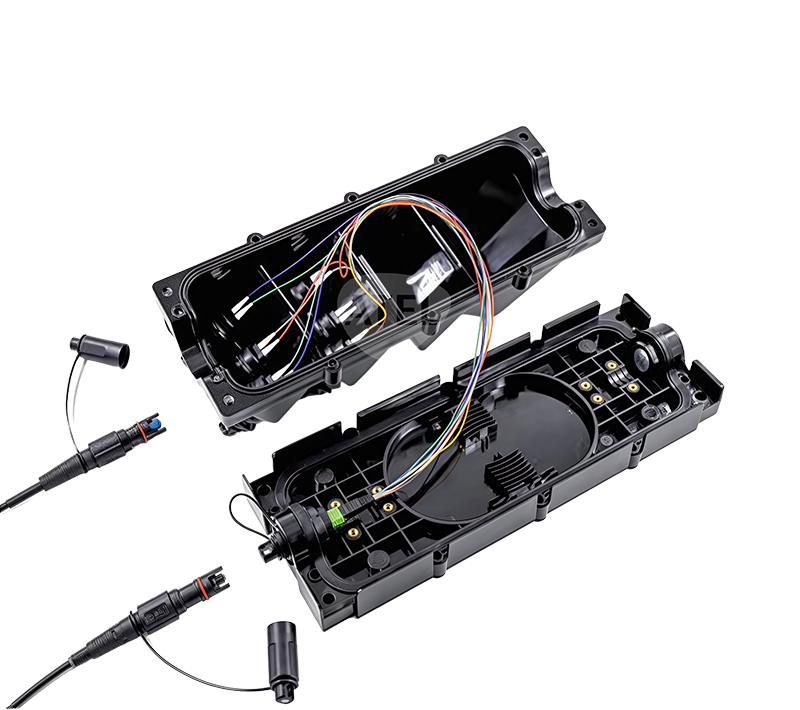

FTTA (fiber to the Antenna) program requirements for outdoor environment conditions.  FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

Features

High compatibility : can be assembled ODVA, Hconn(OptiTap compatible), MiniSC, ODC, PTLC, PTMPO or power adapter；
Factory-sealed or field assembly；
Strong enough: working under 1200N pulling force long term；

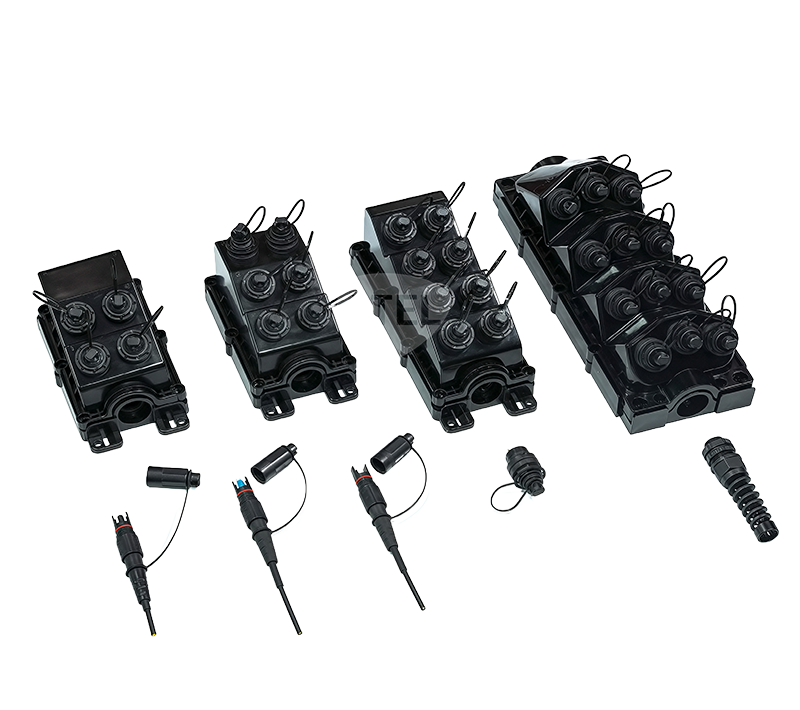

From 2 to 12 ports for single or multifiber harsh connectors；

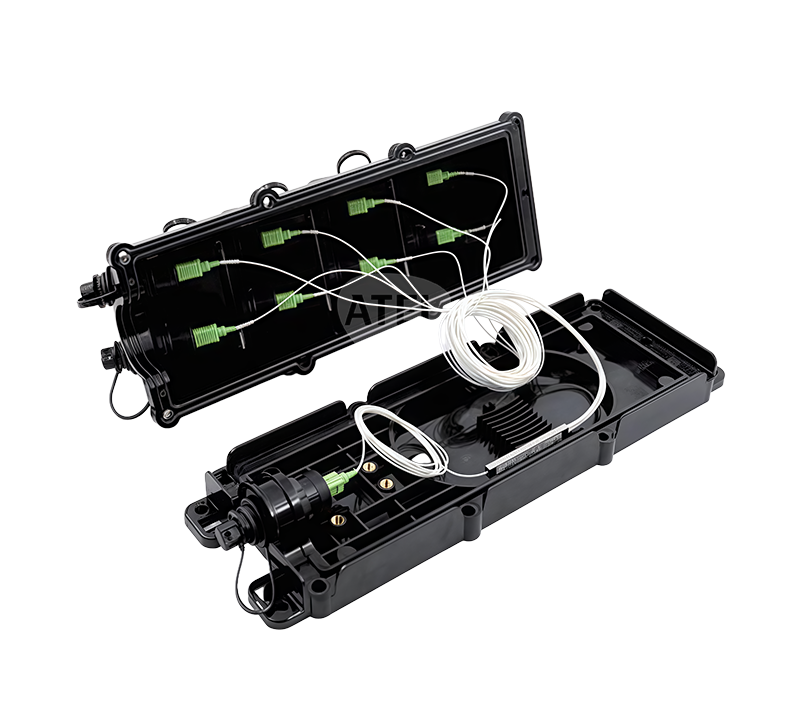

Available with PLC or splice sleeve for fiber divide；
IP67 waterproof；
Wall-mounting, aerial installation or holding pole installation；
Decreased angle surface and height make sure no connector interfering when operating；
Meet IEC61753-1 standard；
Cost effective: save 40% operating time；
Decreased angle surface and height make sure no connector interfering when operating.

Applications

Multi-purpose Outdoor.
For connection between distribution box and RRH.
Deployment in Remote Radio Head cell tower applications.

Specification

Produce Name2/4/6/8/12/24 cores fiber outdoor terminal for tower MST closure 5G base station closure connector/ Toneable
UsageFTTA harsh environment
Product name2/4/6/8/12/24MST Closure
ApplicationFTTx  FTTA  FTTH Network
