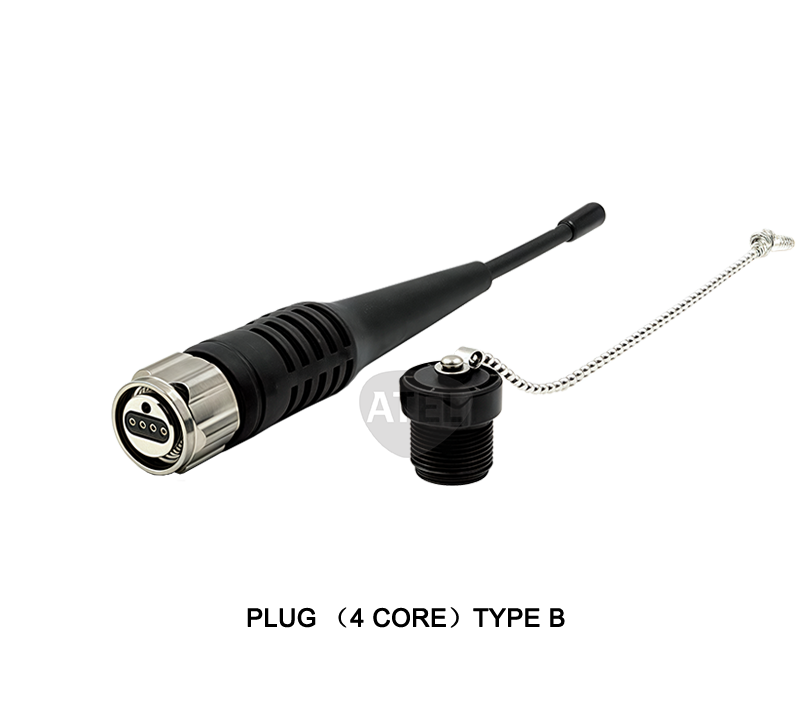

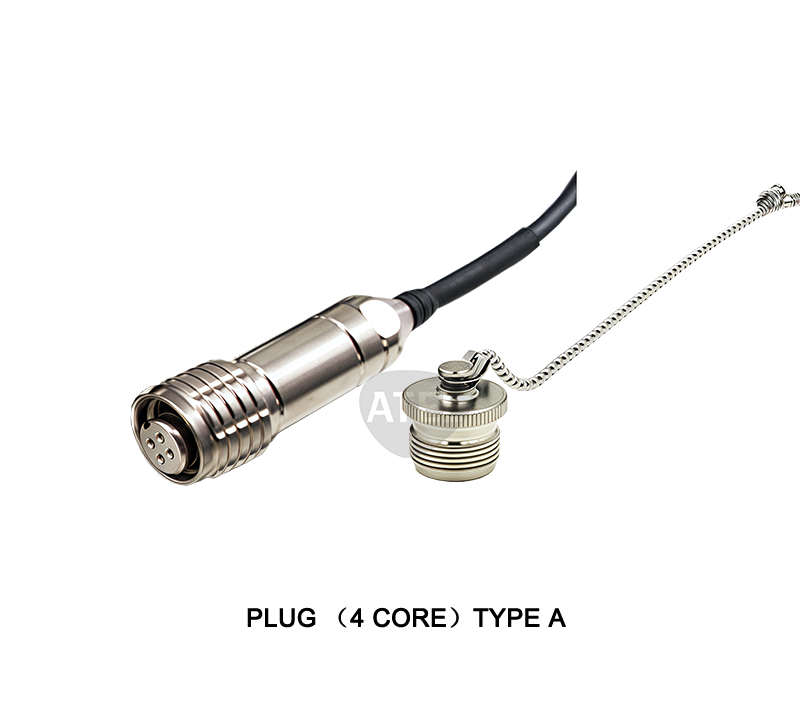

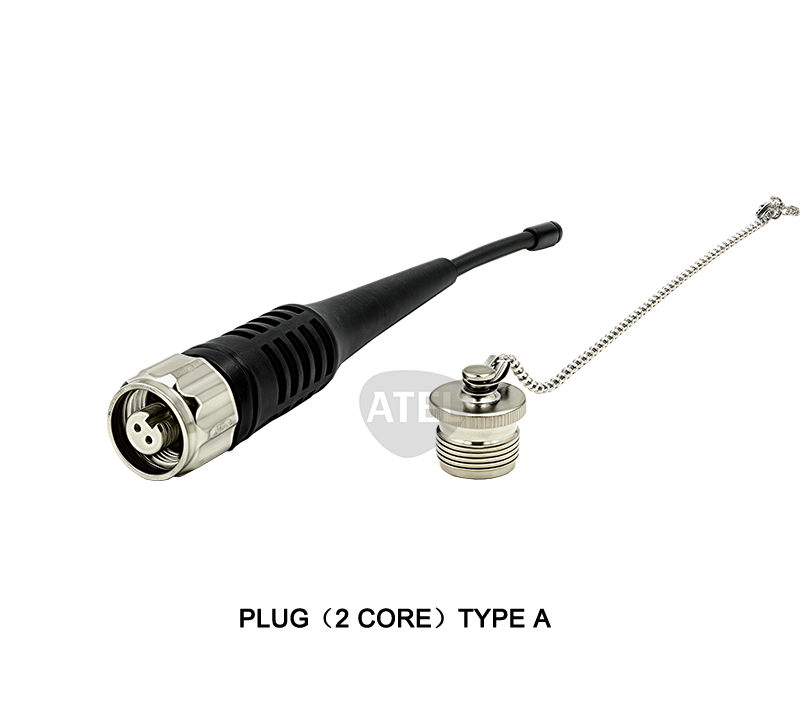

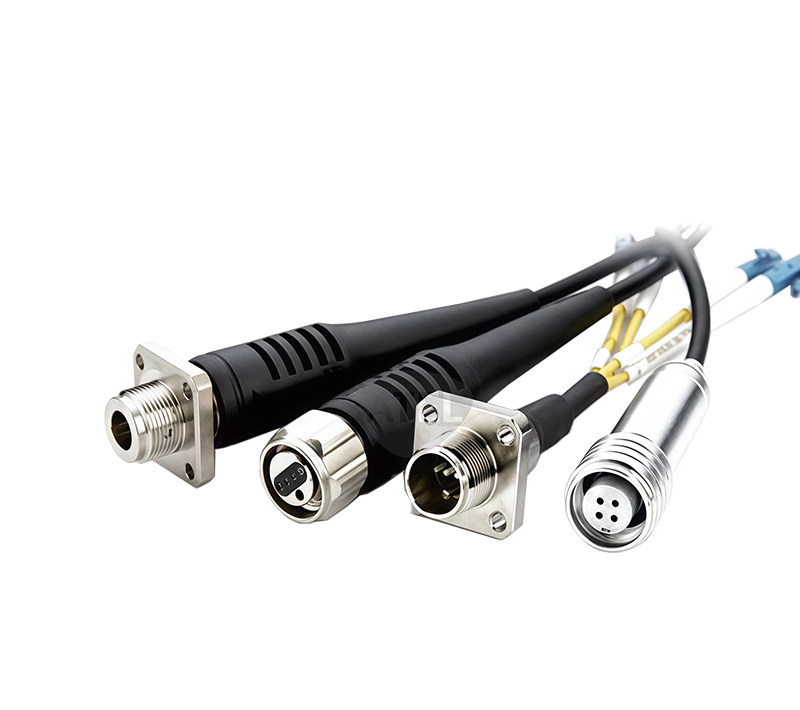

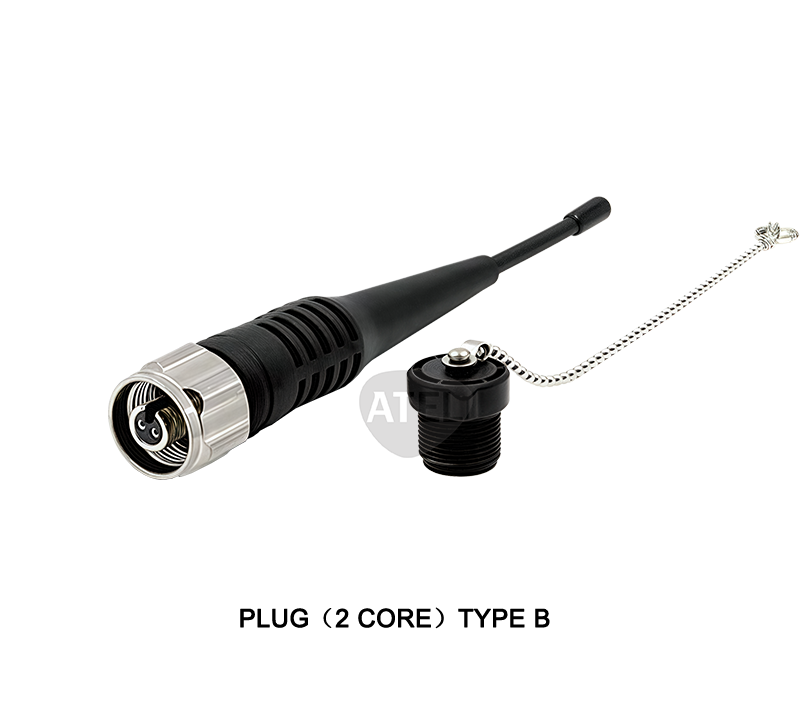

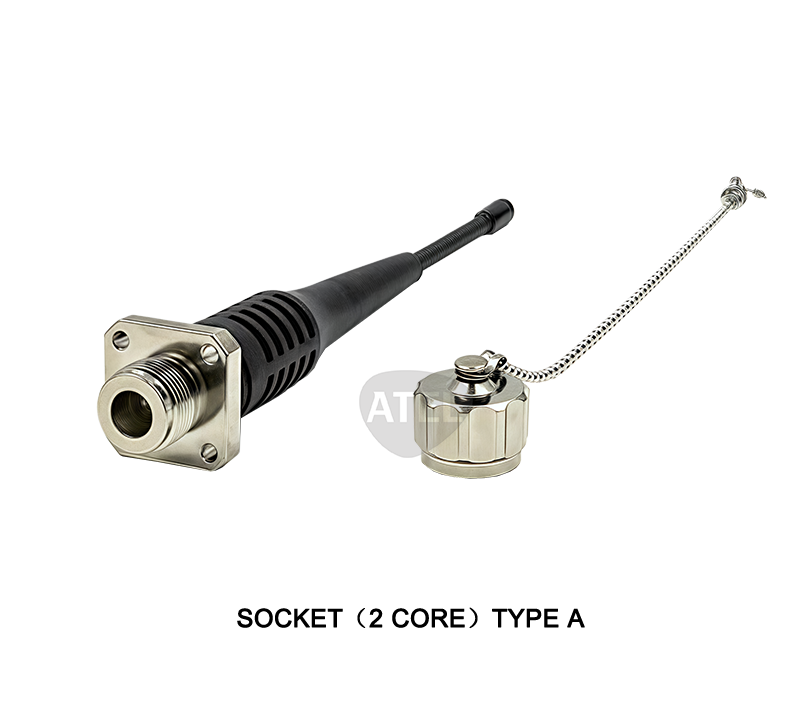

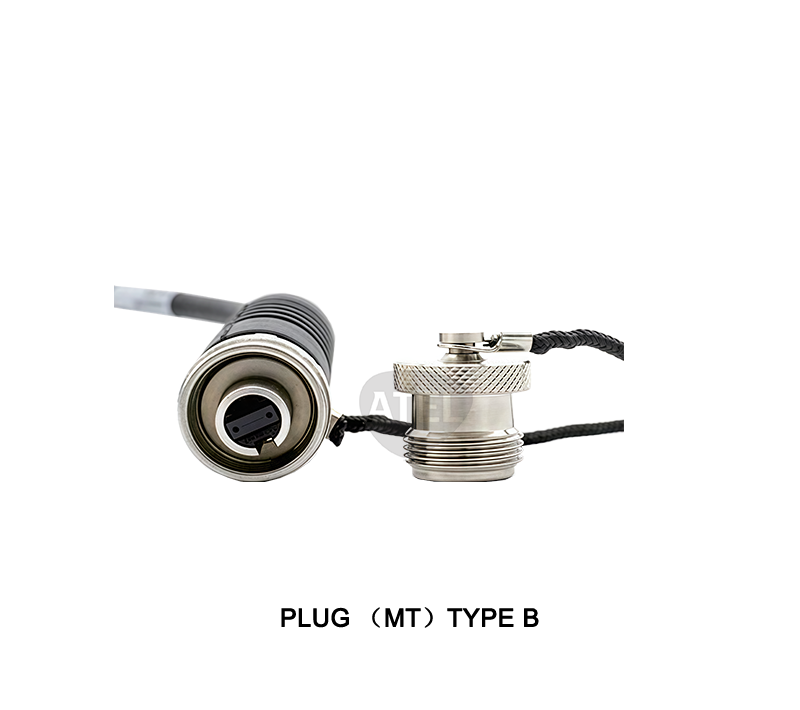

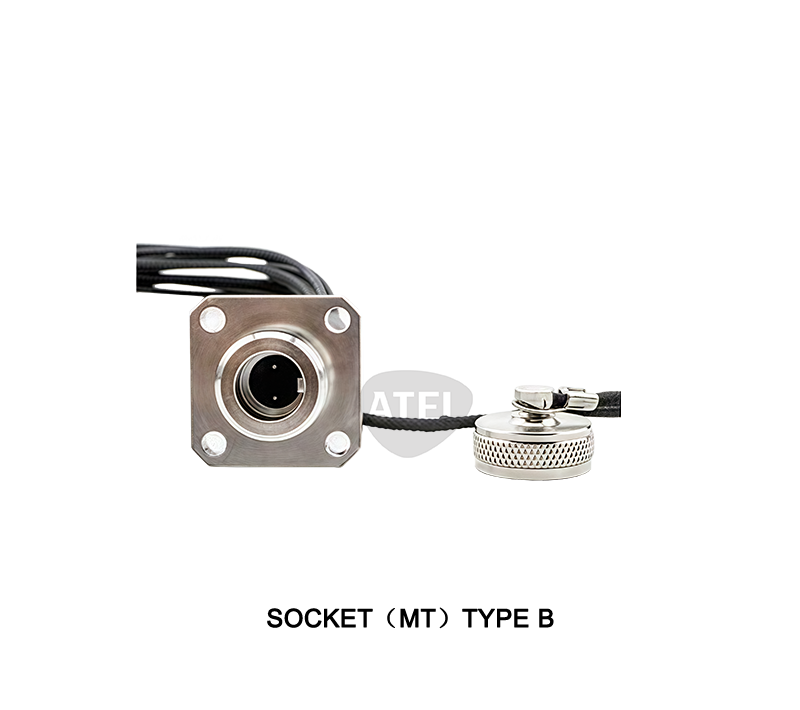

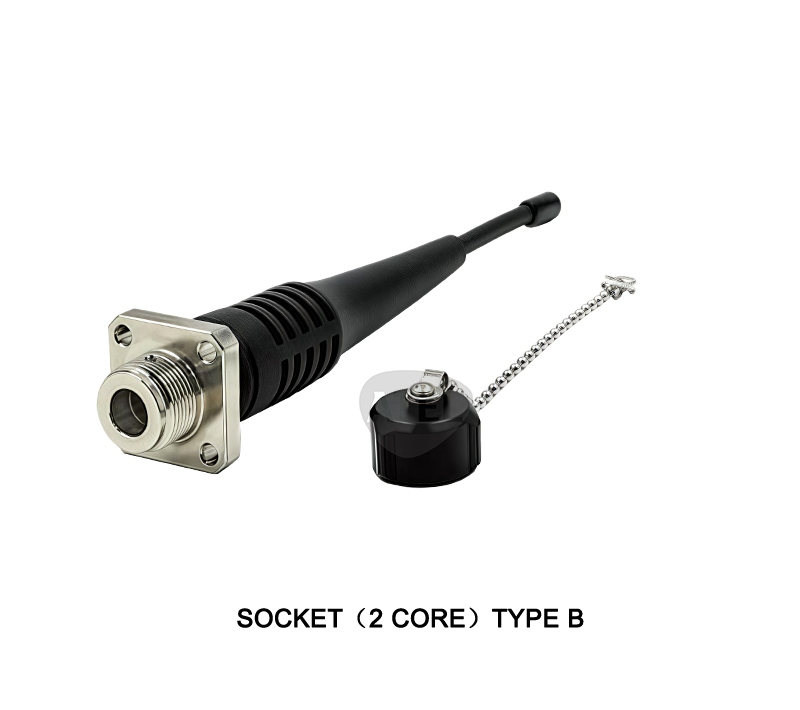

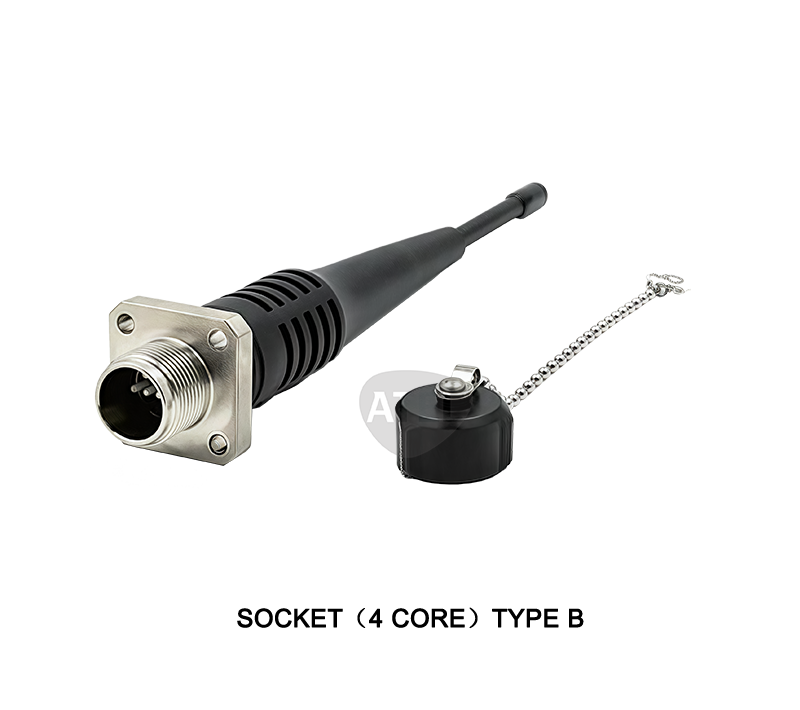

ODC Connector & Patch Cord

ODC Connector & Patch Cord

with CPRI/Outdoor Fiber Optic Cable
Contact Us

Description

ODC  connector  together with the far transmission cable,  the  connectors  for  wireless  base station application (WCDMA/TD-SCDMA/CDMA200/Wi-MAX/GSM) that can meet the requirements of FTTA (fiber to the top of the tower). The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection class IP67. They are well suited for Industrial and Aerospace and Defense applications.

Features

Screwed locking mechanism, confirm the connection is long-term and reliable;
Guide structure, can be installed blindly, simply and quickly;
Airtight construction: Water proof, dust proof and corrosion resistant. Protection caps;
Compact appearance, robust and flexible;
Sealing design through wall;
Reduce the times of splicing.

Applications

Indoor and Outdoor applications;
Outdoor & Military communication equipment connection;
Oil field, mine communication connection;
Far transmission wireless base station;
Video Surveillance system;
Optical fiber sensor;
Railway signal control;
Intelligent substation.

Specification

Technology/
Full ceramic ferrule and sleeve
Housing material/Nickel plated brass
Mechanical performanceODC plug≤1000 N tensile load
≤30 N static side load
ODC socket≤30 N tensile load
Installation torque forcemin.1Nmmax.2Nm
Operating temperatureIEC 61300–2-22-40℃ up to +85℃
Mating durability/
1000 cycle
Ingress protection(mate)IEC60529IP68
Salt mistIEC61300-2-2630 days passed
VibrationIEC61300-2-1Pass 10-500Hz/10g
ShockIEC61300-2-9Pass 100g
