Description

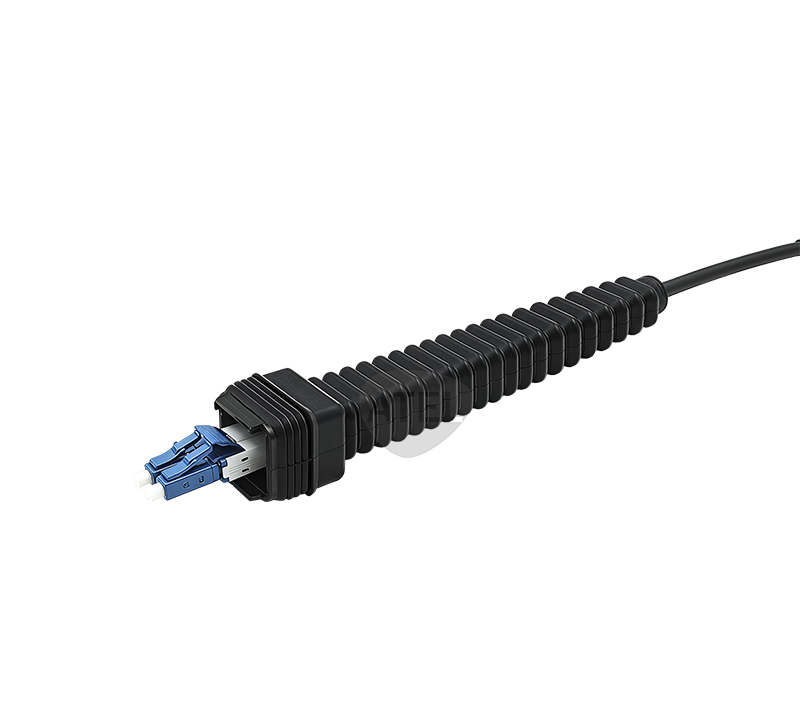

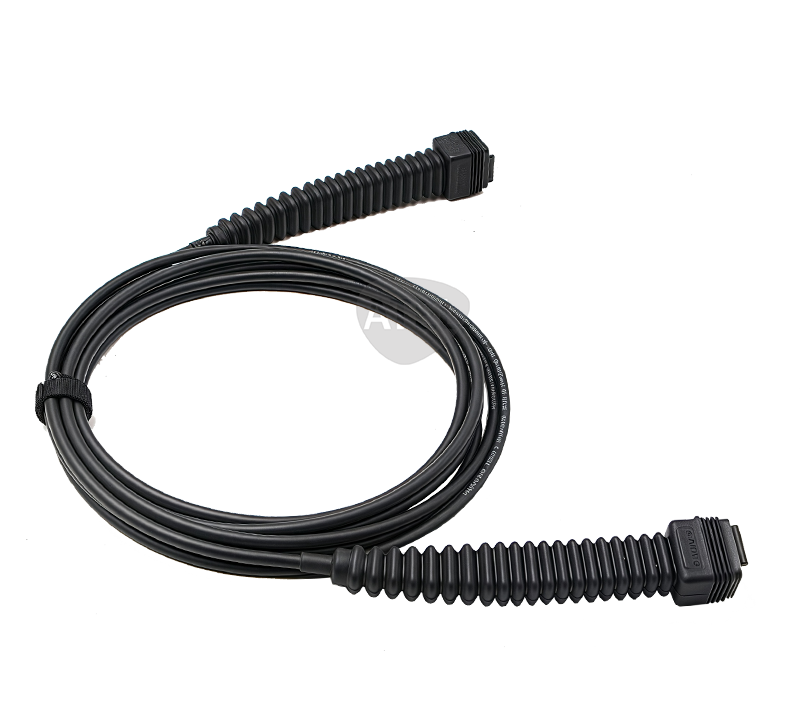

The NSN boot DLC patch cord is available with 45 or 90 degrees and straight duplex to connect the Nokia Simens RRH panels. The boot is corrugated waterproof rubber, to protect the DLC connectors inside. The fiber cable has corrugated steel armored or non-armored for option with UV resistance jacket.

Features

All cable contain rodent resistance；
Available diameter: 5~8 mm；
IP66 protection, salt-mist proof；
Ruggedised design and installation proof；
FTTA feeder for all common RRU models and systems；
Standard assemlies and customized lengths available with short leat time；

Applications

Outdoor FTTP, FTTA
Broadband;
Telecom networks
Optical test equipments
Local area networks
Wide area networks

Specification

Item
Value
Cable Diameter5.0mm / 7.0mm
Connector TypeDuplex LC With Straight NSN Boot
Fiber ModeSM G652D G657A1 G657A2 G657B3/ MM OM1 OM2 OM3 OM4
Fiber Count2 Core
Cable JacketLSZH, TPU, PE
Length1~150 m or Specify
Operating Temperature–40°C to +85°C
Mating Durabilitymin. 50 cycles
