PLC CouplerSplitter | ATEL Technology Corporation

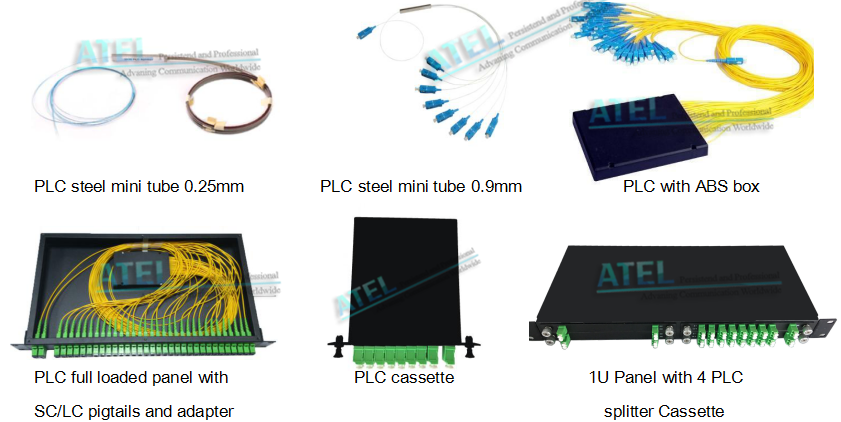

Mini module, ABS box, Cassette clipped, Patch panel

Description

1) Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2) It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3) All products meet GR-1209-CORE and GR-1221-CORErequirements.

4) ATEL provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. ATEL supplies PLC coupler-Mini module, ABS box, Cassette clipped, Patch panel, with reliable quality and excellent pre and after sales service.

Features

v Type:1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32, PLC splitter

v Low IL &PDL

v patch panel plc splitter

v High reliability&good channel-to-channel uniformity

v Wide operating wavelength&small size

v Large operating temperature range& Excellent Environmental

Applications

v FTTX (FTTP, FTTH, FTTN, FTTC)

v Local Area Networks (LAN)

v Cable television (CATV ) &Passive Optical Networks (PON)

v Test Equipment

Specifications

Parameters	1x2	1x4	1x8	1x16	2x16	1x32	2x32	1x64
Operating Wavelength(nm)			1260~1650
Fiber Type			SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	3.9/3.7	7.2/7.0	10.2/10.0	13.7/13.5	14.0/13.8	16.5/16.3	16.8/16.6	20.5/20.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.2	1.5	1.6	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(PDL, dB)	0.2	0.2	0.3	0.3	0.3	0.4	0.4	0.4
Directivity (dB)	55	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)			-40~85
Storage Temperature (°C)			-40~85
