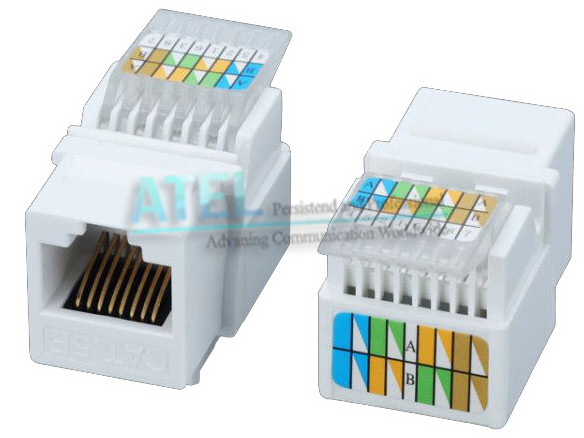

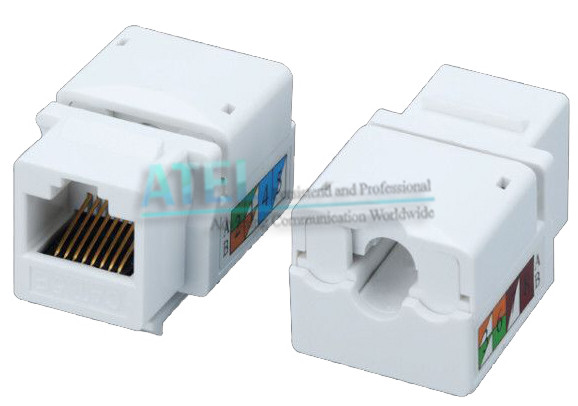

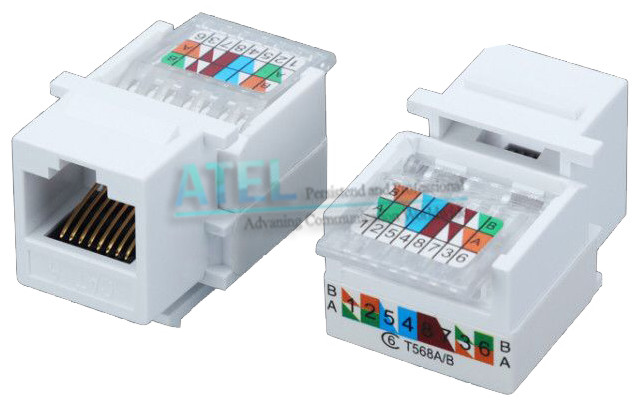

CAT5E,CAT6  keystone jack

CAT5E,CAT6 Keystone jack from ATEL provide ultimate performance and durability, is a tool free jack suitable for patch panels, and faceplates.no matter what if they are used in a home network installation or being used to build up the largest data center, these Keystone jack will live up to the expectations time and time again.

Compliance

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5e/6  requirements.

Meet TIA/EIA TSB-40

Meet ISO/IEC Generic Cabling Standard 11801

Meet CENELEC Generic Cabling Standard EN50173

Electrical

Current rating:   1.5 Amp Max.

Voltage rating:   150 Volts

Contact resistance:   20 m-ohm

Insulation Resistance:   500M-ohm

Dielectric Withstand Voltage:   1000 V AC RMS, 60Hz 1min

Materials

Housing:  PC

IDC:   PC, Accept 22-26 AWG Solid Wire.

PCB:   FR4 1.6mm(0.04") thickness, 2 layers

Contact:  Phosphor bronze with Gold plating on contact area.

Performance

Life (mating cycles):   750 Cycles minimum

I nsertion Force :  30 N

Retention strength :  7.7kg between jack and plug

Propagation Delay:   2.5ns max.!1-500MHz

Propagation Delay Skew:   1 .25ns max.!l -500 MHz

Coupling Attenuation:   45 dB @ 30 - 500 MHz
