100/1000Mbps Fiber Media converter Converter(SFP to RJ45)
The Transceiver converts 100/1000BASE-SX/LX/LH/EX/ZX fiber to 100/1000Base-T copper media or vice versa. It is designed for use with 850nm multi-mode/1310nm single-mode/WDM fiber cable utilizing the LC-Type connector, transmitting data up to 0.55 kilometers or 100 kilometers. What's more, the SFP to Ethernet Converter can work as a stand alone device (no chassis required) or with B&TON’s 19” system chassis.
Features
* Works at 100/1000Mbps in Full-Duplex mode for both TX port and FX port
* Supports Auto MDI/MDIX for TX port
* Provides switch con guration of Force /Auto transfer mode for FX port
* FX port support hot-swappable
* Extends fiber distance up to 0.55/2km for multi-mode fiber and 10/20/40/80/100/120km for single-mode fiber
* Easy-to-view LED indicators provide status to monitor network activity easily
Specifications
|
Optical Interface
|
Connector
|
SFP LC/SC
|
|
Data Rate
|
155Mbps, 1.25Gbps
|
|
Duplex Mode
|
Full duplex
|
|
Fiber
|
MM 50/125um,62.5/125um
SM 9/125um
|
|
Distance
|
155Mbps:
MM550M/2km,SM 20/40/60/80/100/120km
1.25Gbps:
MM 550m/2km,SM 20/40/60/80km
|
|
Wavelength
|
MM 850nm,1310nm
SM 1310nm,1550nm
WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side)
WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side)
|
|
UTP Interface
|
Connector
|
RJ45
|
|
Data Rate
|
10/100Mbps, 10/100/1000Mbps
|
|
Duplex Mode
|
Half/full duplex
|
|
Cable
|
Cat5,Cat6
|
|
Power Input
|
Adapter Type
|
DC5V, optional(12V, 48V)
|
|
Power Built-in Type
|
AC100~240V
|
|
Power Consumption
|
＜3W
|
|
Weight
|
Adapter Type
|
0.39kg
|
|
Power Built-in Type
|
0.67kg
|
|
Dimensions
|
Adapter Type
|
94*70.5*26.5cm
|
|
Power Built-in Type
|
140.5*111*30cm
|
|
Temperature
|
0~50℃Operating; -40~70℃Storage
|
|
Humidity
|
5~95%(no condensing)
|
|
MTBF
|
≥10.0000h
|
|
Certification
|
CE,FCC,RoHS
|
Application
* Extend your Ethernet connection up to 0~120km away using fiber optics
* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network.

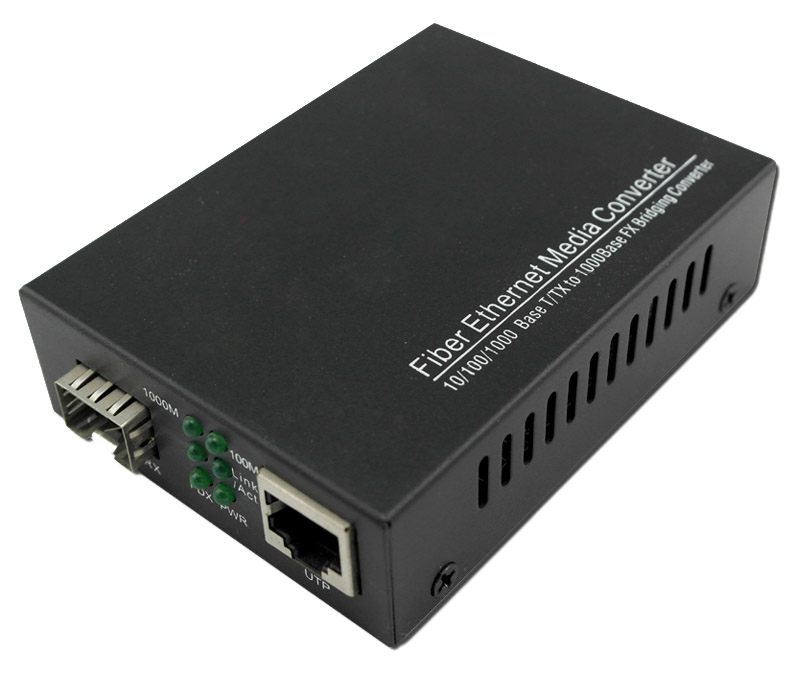

Product Picture
Order Information
|
Part Number
|
Description
|
|
950SFP-FE
|
10/100Mbps, 1SFP slot and 1RJ45 port, supports 155Mbps Single/Dual Fiber, 0~120km SFP
|
|
950SFP-GE
|
10/100/1000Mbps, 1SFP slot and 1RJ45 port, supports 1.25Gbps Single/Dual Fiber, 0~120km SFP
|
Optional - DIP SWITCH
Dip Switch, Top position is ON, Low position is OFF
Table 1 .Dip Switch Function
|
No.
|
Switch Function
|
Description
|
|
1
|
LFP
|
Link fault pass through(LFP)
Default Disable status(OFF)
|
|
2
|
Direct_Wire
|
Switch 2 and switch3
Direct_Wire Fast_FWD FunctionMode
OFF OFF Store and forward switch
OFF ON Modified cut-through switch
ON OFF Converter Mode
ON ON auto-change-forward
|
|
3
|
Fast_FWD
|
|
4
|
TP_Force
|
TP_Force Speed_Mode Duplex_Mode
|
|
