ATB-2G Fiber Optical Distribution Box

General Description

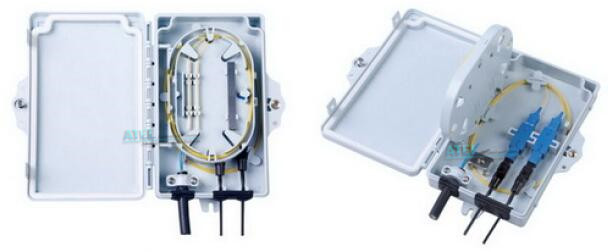

This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.It integrated fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.

Features

1. Total enclosed structure, be in nice shape

2. Material: PC +ABS,wet-proof,water-proof,dust-proof,anti-aging.

3. Clamping for feeder cable and drop cable, fiber splicing, fixation storage, distribution...etc all in one

4. Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adapter installation, easy maintenance.

5. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way,easy for maintenance and installation

6. Most of the types can be installed by the way of wall-mounted poled-mounted,suitable for both indoor and outdoor uses.

Application

1. Telecommunication subscriber loop

2. Fiber to the home(FTTH)

3. LAN/WAN

Technical Data
