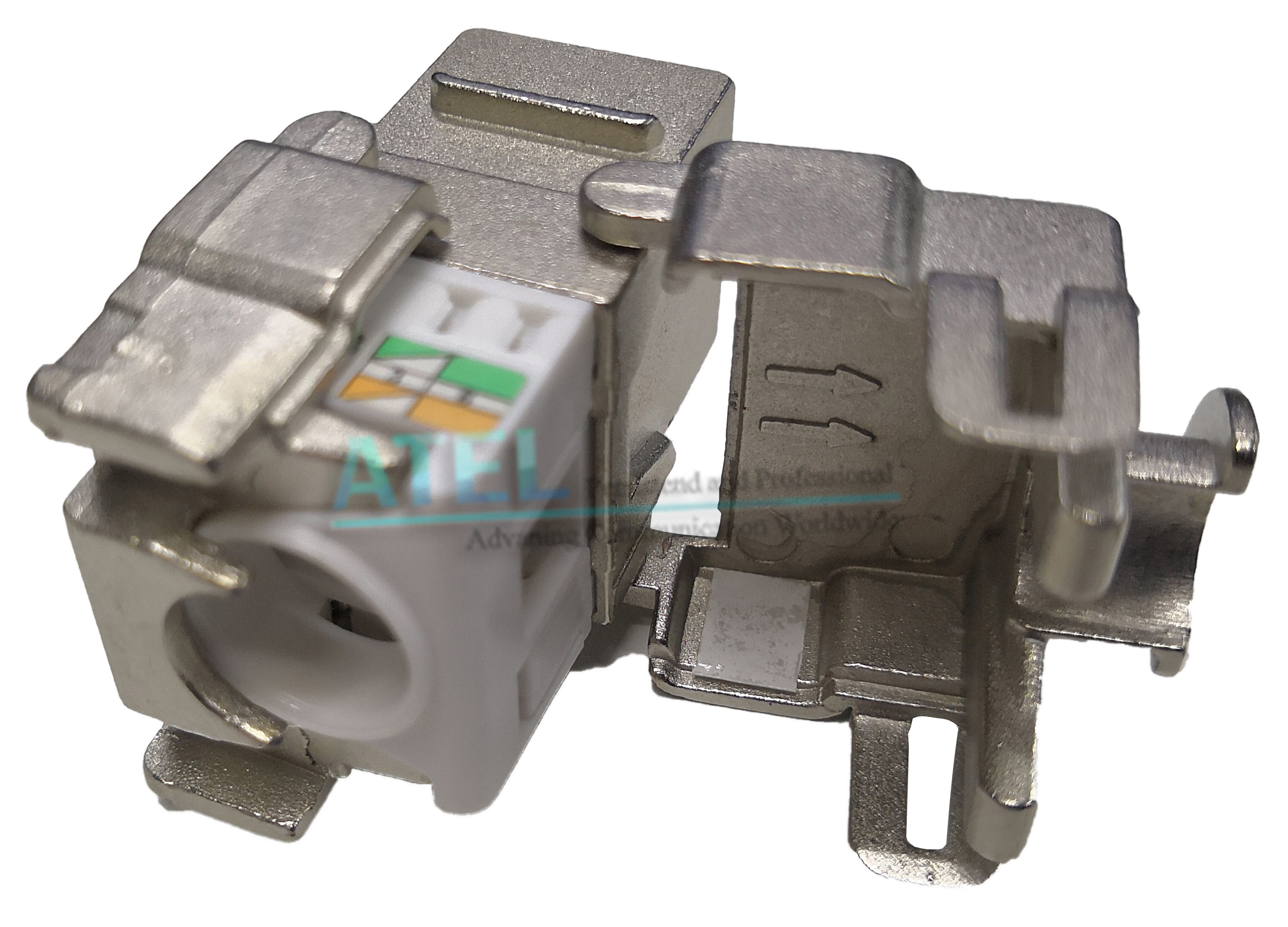

CAT6 CAT6A 8P8C STP Jack CAT6 CAT6A Keystone jack from ATEL provide ultimate performance and durability, is a tool free jack suitable for patch panels, and faceplates.no matter what if they are used in a home network installation or being used to build up the largest data center, these Keystone jack will live up to the expectations time and time again.
Compliance Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6/6A requirements. Meet TIA/EIA TSB-40 Meet ISO/IEC Generic Cabling Standard 11801 Meet CENELEC Generic Cabling Standard EN50173
Electrical Current rating: 1.5 Amp Max. Voltage rating: 150 Volts Contact resistance: 20 m-ohm Insulation Resistance: 500M-ohm Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials Housing: PC IDC: PC, Accept 22-26 AWG Solid Wire. PCB: FR4 1.6mm(0.04") thickness, 2 layers Contact: Phosphor bronze with Gold plating on contact area.
Performance Life (mating cycles): 750 Cycles minimum I nsertion Force : 30 N Retention strength : 7.7kg between jack and plug Propagation Delay: 2.5ns max.!1-500MHz Propagation Delay Skew: 1 .25ns max.!l -500 MHz Coupling Attenuation: 45 dB @ 30 - 500 MHz |
