Sliding Fiber patch ODF Panel with LGX

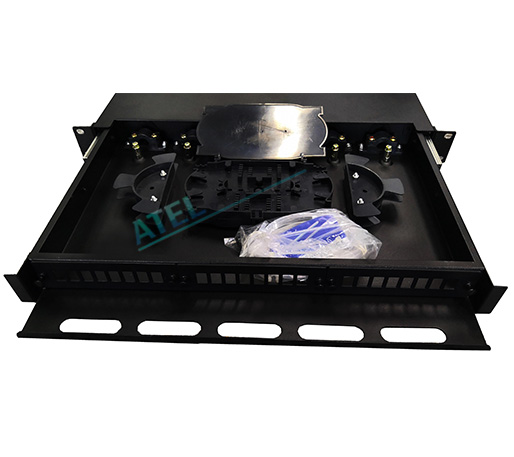

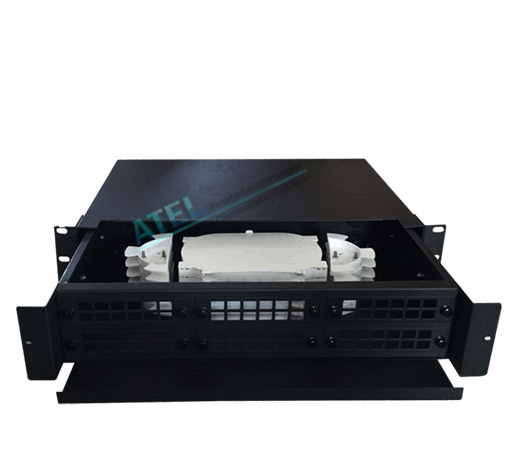

Product Picture

Product Information
|
Model Number:
|
FOP012FCU
|
FOP024FCU
|
FOP048FCU
|
FOP072FCU
|
FOP096FCU
|
FOP0144FCU
|
|
Type
|
sliding patch panel
|
sliding patch panel
|
sliding patch panel
|
sliding patch panel
|
sliding patch panel
|
sliding patch panel
|
|
Port numbers
|
12 ports
|
24 ports
|
48 ports
|
72 ports
|
96 ports
|
144 ports
|
|
Height
|
1 U
|
1U
|
2 U
|
3 U
|
3 U/4U
|
4 U/6U
|
|
Dimension (mm)
|
465*285*45mm
|
465*285*45mm
|
465*285*90mm
|
465*285*135mm
|
465*285*135/180 mm
|
465*285*180/270mm
|
|
Material
|
Cold Rolled Steel
|
Cold Rolled Steel
|
Cold Rolled Steel
|
Cold Rolled Steel
|
Cold Rolled Steel
|
Cold Rolled Steel
|
|
Panel Color
|
RAL 9004 black /or white
|
RAL 9004 black white
|
RAL 9004 black / white
|
RAL 9004 black / white
|
RAL 9004 black / white
|
RAL 9004 black / white
|
|
Full loaded
|
pigtail, adapter,Splice tray ,sleeves and accessories
|
|
sleeves
|
60mm,12 PCS
|
60mm,24 PCS
|
60mm,48 PCS
|
60mm,72 PCS
|
60mm,96 PCS
|
60mm,144 PCS
|
|
Fiber adaptor
|
APC/UPC FC 、SC 、ST 、LC
|
|
Pigtail Connector
|
APC/UPC FC 、SC 、ST 、LC
|
|
Polished
|
APC/UPC
|
|
Fiber diameter:
|
0.9MM/2.0MM/3.0MM
|
|
Fiber Mode
|
SM G652D /MM
|
|
Fiber cable jacket
|
Tight buffer LSZH
|
Application
v Telecommunications subscriber loop
v Fiber to the home (FTTH)
v LAN/WAN
v CATV
Panel Features
v Used for 19" rack
v Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
v With splice trays in the box and integrate heat sealing and wiring into one.
v Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board.
v It is suitable for ribbon or non-ribbon optical fiber cable.
v Every panel can be clamped with FC/SC/ST adapters.
v Versatile panel with extendable double slide rails for smooth sliding
v Comprehensive accessory kit for cable entry and fiber management
v Customize design available
Fiber Optic Pigtail
|
Item
|
Mode Type
|
PC
|
UPC
|
APC
|
|
Insertion Loss
|
SM
|
<=0.30dB
|
<=0.30dB
|
<=0.20dB
|
|
MM
|
<=0.30dB
|
<=0.30dB
|
|
|
Return Loss
|
SM
|
>=45dB
|
>=50dB
|
>=60dB
|
|
MM
|
>=35dB
|
>=35dB
|
|
|
Repetition Test
|
Additional Loss<=0.1dB,Return Loss Variability<5dB
|
|
Temperature Stability(-40℃～85℃)
|
Additional Loss<=0.2dB,Return Loss Variability<5dB
|
|
Operating Temperature
|
-40℃～+75℃
|
|
Storage Temperature
|
-40℃～+85℃
|
|
-Option:Cable Diameters
|
0.9,2mm,3mm&others
|
|
-Type:
|
simplex, duplex
|
|
Jacket
|
PVC,LSZH
|
|
