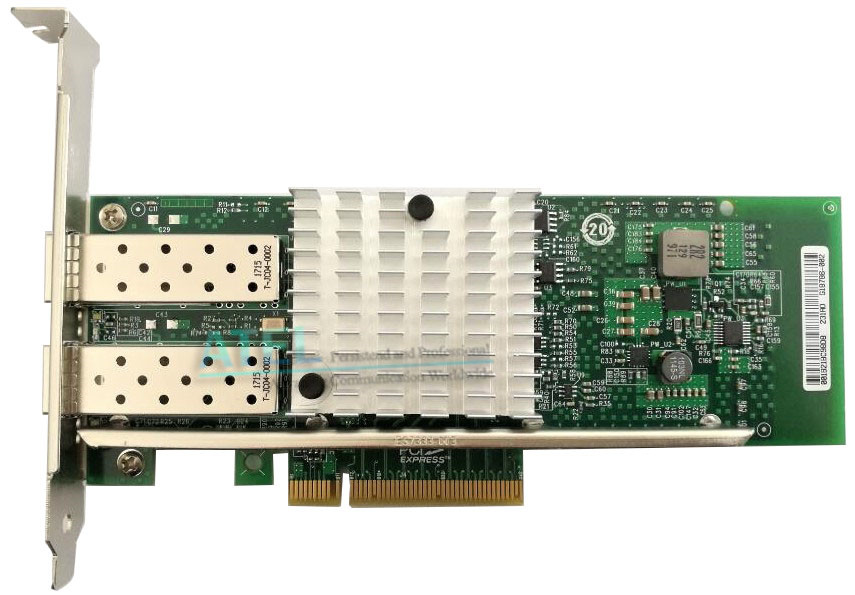

10G 2*SFP+ Gigabit Ethernet Fiber Server Network Card

--ATEFC10G-2SFP+

Description

 ATEFC10G-2SFP+ Server Adapters with SFP+ connectivity are the most flexible and scalable Ethernet adapters to meet the demands of today’s data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.

Unified Networking and Storage

 The family of ATEFC10G-2SFP+ 10G server adapters lowers your data center total cost of ownership (TCO) by providing the ability to route LAN and SAN traffic over a single fabric.

Support for Fiber Channel over Ethernet (FCoE)

FCoE encapsulates Fiber Channel frames over standard Ethernet networks, enabling Fiber Channel to take advantage of 10 GbE networks while preserving its native protocol. ATEFC10G-2SFP+ server adapter offer FCoE hardware acceleration to provide performance comparable to FC HBAs. The server adapters support Data Center Bridging, also known as Converged Enhanced Ethernet (CEE), which allows customers to configure traffic classes and priorities to deliver a lossless Ethernet fabric. An Intel Ethernet X520 server adapter reduces TCO by eliminating redundant fabrics and saves the cost of expensive FC HBAs and FC switch ports.

Support for iSCSI

 The server adapters provide complete support for proven native OS and VMM iSCSI initiators as well as iSCSI boot. Historically, CRC32C computation has degraded system performance, but now with the CRC instruction set included in the latest Intel® Xeon® processors, CRC validation is possible with minimal impact to network throughput while delivering superior data integrity.

The ATEFC10G-2SFP+ server adapters do it all 10 Gigabit LAN, FCoE, and iSCSI; truly delivering on the promise of unified networking.

Reliable Performance

The family of ATEFC10G-2SFP+ 10G server adapters include a number of advanced features that allow it to provide industry-leading performance and reliability.

Security Optimizations

The adapters support IPsec offload for Microsoft’s Network Access Protection (NAP), Active Directory,* and future security capabilities in Windows* 7. A 10G server adapter allows customers to run a secure network environment without sacrificing performance.

Features General

Intel® 82599 10 Gigabit Ethernet Controller

SFP+ Connectivity

Low-profile

Load balancing on multiple CPUs

iSCSI remote boot support

Fibre Channel over Ethernet (FCoE) Support

Support for most network operating systems (NOS)

RoHS-compliant2

Intel® PROSet Utility for Windows* Device Manager

Time Sync (IEEE 1588, 802.1as)

I/O Features for Multi-core Processor Servers

Intel® Direct Cache Access (DCA)

MSI-X support

Low Latency Interrupts

Header Splits and Replication in Receive

Multiple Queues: 128 Tx and Rx queues per port

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Tx TCP segmentation offload (IPv4, IPv6)

Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)

IPsec Offload

MacSec

Virtualization Features

VMDq

Next-Generation VMDq1 (64 queues per port)

PC-SIG SR-IOV Implementation (64 virtual functions per port)

Virtual Machine Load Balancing (VLMB)

Advanced Packet Filtering

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Manageability Features

Preboot eXecution Environment (PXE) Support

Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters

iSCSI Boot

Watchdog Time

Adapter Product Features

Intel® PROSet Utility

Plug and play specification support

Receive Side Scaling

Direct Cache Access (DCA)

Advanced Software Feature

Adapter fault tolerance (AFT)

Switch fault tolerance (SFT)

Adaptive load balancing (ALB)

Teaming support

IEEE 802.3ad (link aggregation control protocol)

PCIe Hot Plug*/Active Periphera component interconnect (PCI)

IEEE 802.1Q* VLANs

IEEE 802.3 2005* flow control support

Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol

(UDP), Internet protocol (IP)

IEEE 802.1p*

TCP segmentation large send offload

MSI-X supports Multiple Independent Queues

Interrupt moderation

Ipv6 offloading — Checksum and segmentation capability extended to new standard packet type

Network Operating Systems (NOS) Software Support

Windows 7

Windows 8/8.1

Windows 10

Windows Server 2003 /2003 R2

Windows Server 2008 /2008 R2

Windows Server 2012 /2012 R2

Windows Server 2016 /2016 R2

SCO Open Server 6 and UnixWare 7.1.x or later

LINUX kernel version 2.4.x,2.6.x,3.x,4.x or later

LINUX CentOS/RHL 6.x,7.x or later

FreeBSD 7.x or later

SCO Unix 5.x or later

Vmware ESX/ESXi 4.x/5.x/6.x or later
