ATE-3005 Third-generation digital bridge

Product description

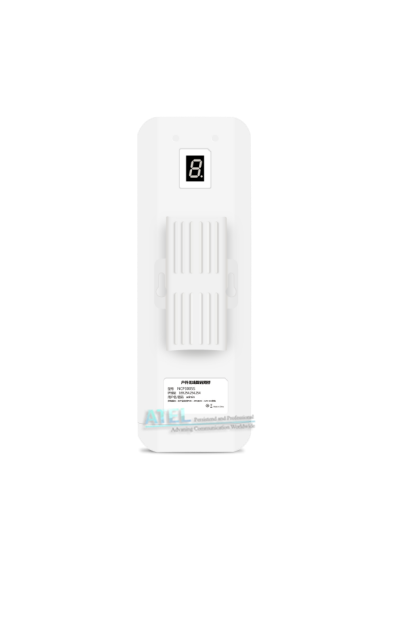

The product ATE-3005 is a high-performance enterprise-class outdoor bridge product using 802.11AN technology and can support 5G full-band.The unique digital tube pairing technology enables easy pairing of point-to-point and point-to-multipoint (within 8 points) devices without computer configuration.Fast network interface, 5G 802.11AN MIMO technology wireless processing speed up to 300Mbps.The power supply mode is flexible. It supports 24V POE network cable power supply and 12V 1A DC local power supply. The network cable power supply distance can reach 80 meters (related to the network cable material).

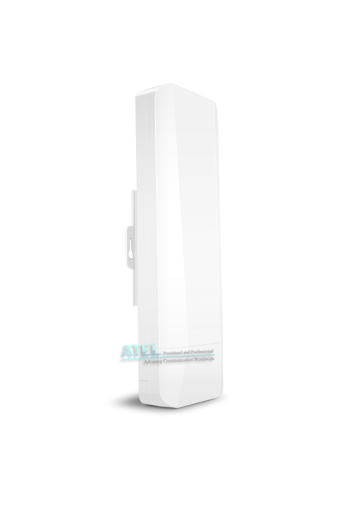

Adopt outdoor IP65 windproof, rainproof, dustproof and sun protection grade shell design to easily adapt to various outdoor harsh environments.Built-in 14dBi double-stimulated plate antenna, easy to install. With features such as high performance, high gain, high receiver sensitivity, and high bandwidth, it greatly enhances wireless transmission performance and stability, and is widely used in short-distance video transmission and data transmission.
Hardware features
v Using 802.11an technology, it provides wireless access speeds of up to 300Mbps, and the NAT conversion rate is >93%.
v The product supports IEEE802.3az, which automatically adjusts the energy consumption according to the actual traffic of the port and saves energy.
v Beam forming technology，Suppression of interference
v Pairing connection is simple and efficient
v Support 5G full frequency band：36、40、44、48、52、56、60、64、149、153、157、161、182、186、190、194.
Parameter
|
Hardware
|
|
Model
|
ATE-3005
|
|

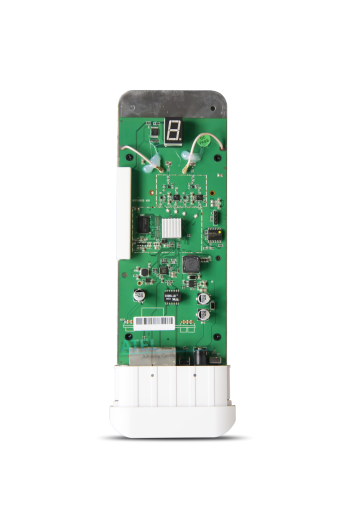

main chip
|
Qualcomm Atheros AR9342 300Mbps
|
|
Clock frequency
|
CPU：560MHz DDR:N/A Ref:40MHz
|
|
Wireless echnology
|
5.8G:300M 802.11an MIMO
|
|
Memory
|
64MB DDR RAM(UP to 128MB DDR RAM)
|
|
Flash
|
8MB（maximum support 16MB）
|
|
Network Interface
|
1*10/100 Mbps Adaptive Network Interface，1*COM Debug Interface
|
|
Button
|
1* Digital switch/reset button, short press the digital tube to display the value plus one,Press and hold for 15 seconds to restore factory settings
|
|
Indicator light
|
Signal SIG indicator, ETH network interface status indicator, power indicator, digital indicator
|
|
Power supply
|
24V 1A non-standard POE;
DC 12V 1A, power consumption <10W
|
|
Temperature
|
-30℃～+55℃（Working ），-40℃ ～+70℃（storage）
Humidity (non-condensing)：10％～90％（working），5％～95％（storage）
|
|
Antenna
|
Built-in dual polarization high gain 14dBi directional plate antenna (60° horizontal half angle, 60° vertical half angle)
|
|
Radio frequency
|
|
Frequency range
|
ISM band: 4.900GHz ~ 5.850GHz
|
|
Channel distribution
|
5G：36、40、44、48、52、56、60、64、149、153、157、161、
182、186、190、194
|
|
Receiver sensitivity
|
11a: 72dbm@54Mbps, -90dbm@6Mbps
11n: -70dbm@MCS7, -90dbm@MCS0
|
|
EVM
|
802.11n: ≤-28 DB 802.11a: ≤-25 DB
|
|
Frequency deviation
|
±20ppm
|
|
Software features
|
|
Working Mode
|
Master AP, Slave AP (Dial Switching)
|
|
Network mode
|
Point-to-point, point-to-multipoint (within 8 points)
|
|
Management method
|
Chinese WEB remote management
|
|
Network
|
bridges: static IP/dynamic acquisition
Gateway: Static IP / Dynamic Acquisition / PPPoE
|
|
Bridge management
|
Bind cloud accounts for free, real-time remote management of equipment
|
|
Wireless Management
|
Bridge Configuration / Advanced Configuration / WiFi Settings
|
|
System
|
time zone configuration, login password modification, backup/restore, restart/timing restart
|
|
System Update
|
Based on WEB browser local update, online update
|
|
