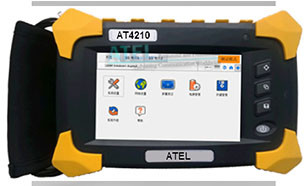

AT4210 Gigabit Ethernet Tester

ATEL AT4210 is a handheld 10M/100M/1000M gigabit Ethernet tester, used for the Ethernet installation, operation and maintenance services.

The AT4210 design in a small and portable device which provides packet capture, network monitoring, networkperformance testing, data generation, test leads and error test functions in an organic whole unit. It is widely used in network layer 1/2/3 BER test and RFC - 2544 test. AT4210 help maintenance people to quickly locate fault and analysis network

Features

u Electrical port and optical ports with rate at 10/100/1000Mbps

u Smart and durable, field application ready

u 5 inch LCD color touch screen, smart navigation menu

u Results can be shown graphically and numerically

u RFC2544 auto test, quickly find the fault

u Full Y.1564 test

u LED indicator light, on-screen display and ICON

u Large capacity memory to save settings and test results

u Embedded software to easy upgrade

Functions

u L1/L2/L3 BER Test

u Integrated RFC2544 benchmark test：throughput, packetloss, latency, back-to-back

u Multi- stream traffic generation (10 traffic stream)

u Receiving end flow filter analysis

u VLAN test

u Connectivity test: PING, TRACE ROUTE,IP scan

u Through, terminal mode test and frame length, frame type, and utilization stat.

u Optical power test, optical module temperature, working current, voltage test

u Cable VCT: Identifying short circuit, open circuit, cable length fault location

u Service disruption time test

u Intelligent loop back test

u Jitter Test

u USB data interface, driver-free

Specification
