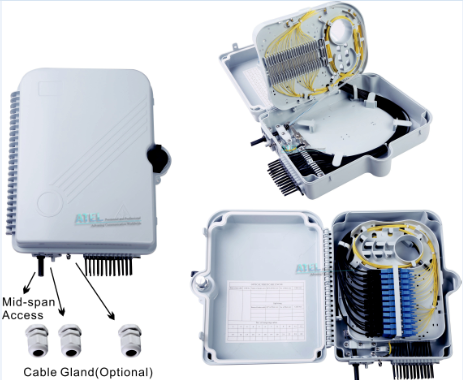

ATB-24A  FTTB BOX

General Description

This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.

Features

✦ Total enclosed structure, be in nice shape

✦ Protects and manages cable effectively

✦ Secured with anti-theft locking mechanism

✦ Standard size, light weight

✦ High quality PC +ABS material

✦ Good properties of dust, and moisture proofing,IP65

✦ Clamping for feeder cable and drop cable, fiber splicing, fixation storage, distribution...etc all in one

✦ Suitable for SC and LC duplex adaptor and pigtai

✦ Easy to operate

✦ Wall and pole mountable (accessories optional)

✦ Suitable for both outdoor and indoor use

Application

● Telecommunication subscriber loop

● Fiber to the home(FTTH)

● LAN/WAN

Technical Data

Dimensions Installation Dimensions

       317mmx 237mmx101mm                                                        274mm x 206mm(187mm)

Wiring Diagram
