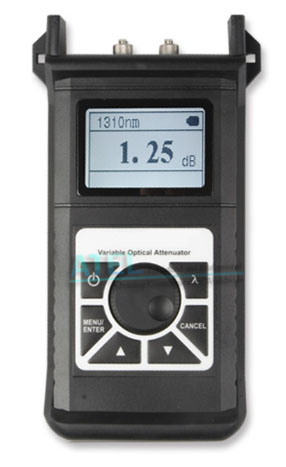

AT3303---Optical Variable Attenuator
AT3303 handhold optical variable attenuator is used for continuously variable optical signal attenuation. As the attenuator is used in the laser system for the on-line testing, therefore, AT3303 can be used in the digital system of communication devices (such as: PHD, SDH) and also in the system of adopting analog modulation (CATV)
Main Features
* Stepwise attenuating by circumgyrated dial: attenuating step 0.05dB
* Provide with the function of displaying dB and dBm attenuating value
* 10 minutes Auto-off function can be activate and deactivate with keypad operation.
* After off the instruments, the system will have the memorizing of the attenuating value and the attenuating step, in order to restore the system back to the previous shut down state when open the instruments next time
* Portable, rugged, lightweight; Easy to use.
Applications
Telecom Maintenance
CATV Maintenance
Comprehensive cable construction system
Optical instruments research and development
Optical communication education and lab testing
Other optical project
Specifications
Type
AT3303
Attenuating wavelength Range
1260~1650nm
Fiber Model
9/125um SM
Optical Connector
FC/PC
Calibrated wavelengths
1310/1490/1550/1625nm
Measurement Range
2~60dB
Resolution
0.05dB
Minimize Insertion Loss
＜2.0dB
Linearity
±0.5dB
Repeating
±0.2dB
Attenuating Accuracy
±0.8dB
Return Loss at Input/ Output
＞35dB（typical value40dB）
Max input
＋20dBm
Displaying type
lattice 128*64 black and white, white back ground light
Rechargeable batteries
8.4V
Power supply adaptor
8.4V
Operation temperature
0~40℃
Operation Time
40 hours
Storage temperature
-10~60℃
humidity
0~85%（non- condensation）
Dimensions
180X90X36.5
Weight
427g
Standard Packages
MODEL
INCLUDES
AT3303
AT3303 Main Body, Protective Rubber Boot, Rechargeable battery, Power Supply Adaptor, Instruction Manual and Cotton Swabs and Rigid hard carrying case.
|
