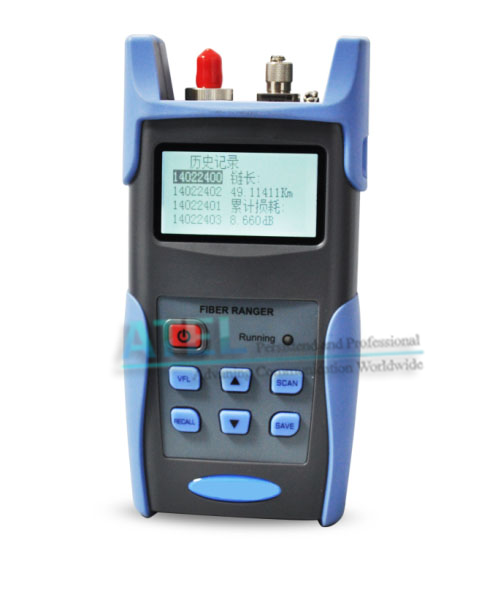

AT3304A---Optical Fiber Ranger
AT3304A Fiber Ranger is newly designed fiber optic tester; it aims at fiber fiber network installation, fiber network engineering acceptance and fiber network maintenance. It can detect fiber fault location more accurate and quick, and designed for field use.AT3304A fiber ranger is an economical tester instead of OTDR in the test and maintenance of fiber network.
Main Features
* Easy to identify the faults location
* Analysis reflection events and attenuation events automatically
* Build-in visual fault locator function
* Automatic Pulse Width Control design to ensure a convenient operation.
* Up to 2500 measurement results can be stored in the unit.
Specifications
Model
AT3304A
Operating Wavelength
1550 ± 20
Fiber Type
9/125 um
Optical Connector Type
FC/PC
Detector Type
InGaAs APD
Pulse Width
Auto adjustment
Max.Distance（km）
60
Distance Accuracy
（Reflection Event）(m)
±(3m + 2*10^-4 * distance)
Ref lection Event Dead Zone(m)
15m
Power Supply
AA,3pcs
Battery Operating Time
> 2500
Auto Power-off time (min)
10
VFL output power(mW)
> 1 mW
Data Storage Capacity
2000
Working Temperature(℃)
-5 ~ 40
Storage Temperature(℃)
-10 ~ 70
Dimensions(mm)
175*90*44.5
Weight(g)
278
Standard Packages
MODEL
INCLUDES
All Models
AT3304A Fiber Ranger, 3pcs 1.5V batteries, User Manual, USB, CD, Cotton swabs
|
