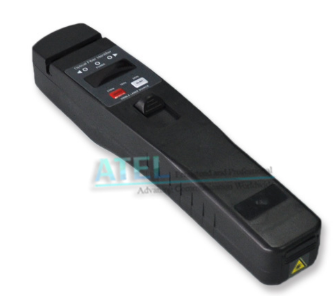

AT3306D Series---Optical Fiber Identifier
AT3306D Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function.
Using the macro bending technology on line for nondestructive testing, AT3306D can measure the signal direction and power and avoid misoperation resulting in interrupted lines.
Features
* * Indicate the signal directions and power in fiber
Specifications
Type
AT3306D
Identified Wavelength Range
750-1700 nm
Insertion Loss
1.0dB
Fiber Type
< 3mm Fiber
Identified Signal Type
270Hz/1KHz/2KHz
Display Type
LED
Detector Type
1mm InGaAs
Minimum detection power
-35dBm(1550nm)
-30dBm(1310nm)
Center Wavelength
650nm
Output Power
10mW
Alkaline Battery
2*AA
Battery Life
> 60H
Operating Temperature
0~+50℃
Storage Temperature
-20~+60℃
Weight
200g
Dimension
230*43*48mm
Standard Packages
MODEL
INCLUDES
AT3306D
AT3306D Optical Fiber Identifier, Alkaline battery, User Manual, Cotton
|
