AT3110---Optical Light Source

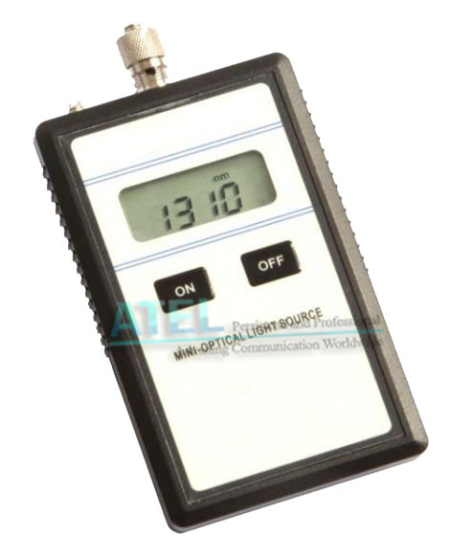

AT3110 Mini optical light source Is the most rugged small size instrument in the industry. It integrates super small size and strong function in one unit. With 3 pieces of 1.5V alkaline batteries, it can work continuously for more than 40 hours. The total weight is only 110g. Together with the AT3205 Mini optical power meter, it provides an excellent solution for fiber optic network and for field work.

Features

* High stability of the output power

* Economic type, easy to use

* Matched with the AT3205 mini power meter,

It constitutes the smallest optical loss test kit, perfect for field testing

Applications

Maintenance in Telecom Maintenance CATV

Fiber Optic Lab Testing

Other Fiber Optic Measurements

Specifications

Type	AT3110
Wavelengths(nm)	1310 or 1550
Emitter Type	FP-LD
Output Power(dBm)	-7~-6
Spectral Width(nm)	≤10
Output Stability	±0.05dB/15mins; ±0.1dB/ 8hours
Optical Connector	FC/PC
Power Supply	3pcs 1.5V alkaline batteries
Battery operating time(hour)	40
Operating Temperature(℃)	-10~+60
Storage Temperature(℃)	-25~+70
Dimension(mm)	115X60X20
Weight (g)	110
ATEL Recommendation
AT3110 Handheld Light Source is designed for mini portfolio with AT3205 Optical Power Meter for measuring optical loss on both single mode and multi-mode fiber cable.

Standard Packages

MODEL	INCLUDES
All AT3110 Models	AT3110 Optical Light Source, Alkaline battery, User Manual and Protective Holster.
