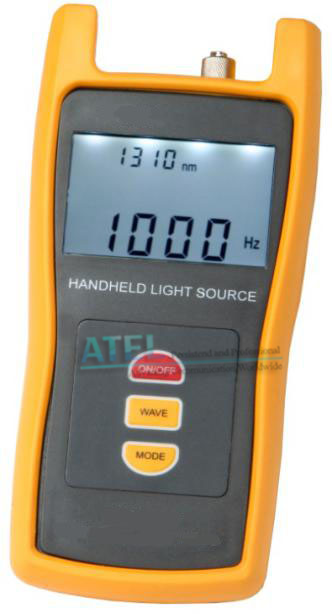

AT3109 Series---Optical Light Source

AT3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multi-mode fiber, as well as other wavelengths according to customer needs. Together with the AT3208 optical power meter, it is a perfect solution for the fiber optic network characterization.

Features

* Provides 1~4 output wavelengths which can be optional according to customer’s needs

* CW, 2Hz modulation output at 650nm, and CW, 270Hz, 1 KHz, 2 KHz modulation output at other wavelengths.

* High stability of the output power

* Stable output wavelength

* Backlight LCD display supports night operation

* Compact size and decent appearance

* Large LCD, easy operation

* Alternative 10 minutes Auto-off function conserving battery life

Specifications

Type	AT3109
Wavelengths(nm)	650	1310/1550	850/1300	850/1300/1310/1550
Emitter Type	FP-LD,LED or others please specify
Typical Output Power (dBm)	0	-7dBm for LD, -20dBm for LED
Spectral Width(nm)	≤10
Output Stability	±0.05dB/15mins; ±0.1dB/ 8hours
Modulation Frequencies	CW,2Hz	CW,270Hz,1KHz,2KHz
Optical Connector	FC/ universal adaptor	FC/PC
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time(hour)	45
Operating Temperature(℃)	-10~+60
Storage Temperature(℃)	-25~+70
Dimension(mm)	175x82x33
Weight (g)	295
ATEL Recommendation
AT3109 Handheld Light Source is designed for optimal use with AT3208 Optical Power Meter for measuring optical loss on both single mode and multi-mode fiber cable.

Standard Packages

MODEL	INCLUDES
All AT3109 Models	AT3109 Optical Light Source, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual, and Soft carrying case.
