AT3213 series---PON Optical Power Meter

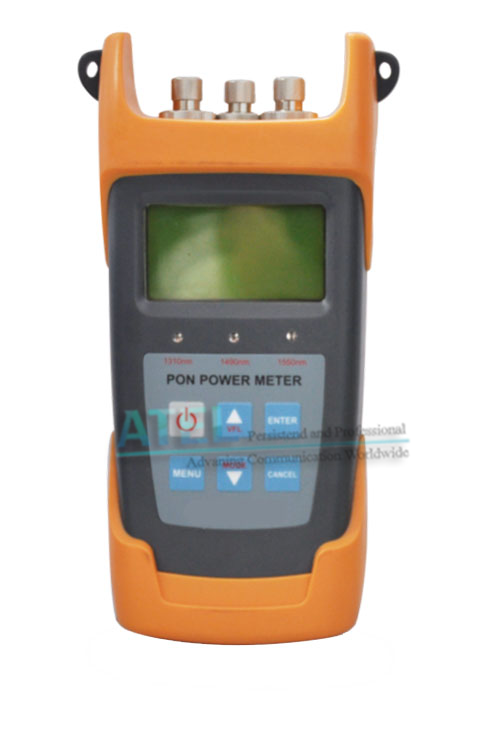

AT3213 Series PON Optical Power Meter is targeting at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.

Features:

* It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.

* Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm).

* Used in Burst mode measurement of 1310nm upstream.

* Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.

* USB communication port enables data transfer to a PC.1000measurement items can be saved in 3213 PON power meter or computer for data review.

* With optical power meter module, include 850、1300、1310、1490、1550、1625sixs( 3213AP，3213A without 850nm wavelength）；With visual fault locator module（3213and3213AV）

* Optical power meter and VFL with one port.（only 3213A）

* Optional Chinese/English display.

* Offers up to 10 different threshold sets in total, three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.

* 10 minutes Auto-off function can be activated or deactivated

* Good key design, high sensitivity, greatly reducing the volume and weight of the tester.

* Different models corresponding to different function, according to own use to choose .

Specifications:

PON module:	AT3213	AT3213A	AT3213AV	AT3213AP
1310 upstream measurement
Pass Zone(nm)	1260nm～1360nm
Measurement Range(dBm)	-40dBm～+10dBm
Output power(max)	15dBm
Isolation@1490/1550(dB)	>40dB
Burst mode measurement error	<±0.5dB
1490 downstream measurement
Pass Zone(nm)	1470nm～1505nm
Measurement Range(dBm)	-40dBm～+10dBm
Output power(max)	15dBm
Isolation@1310/1550(dB)	>40dB
1550 downstream measurement
Pass Zone(nm)	1535nm～1570nm
Measurement Range(dBm)	-40dBm～+10dBm
Output power(max)	25dBm
Isolation@（1310/1490nm）	>40dB
Measurement Accuracy
Connatural uncertainty(dB)	±0.5dB

Linearity(dB)	±0.1dB
Passing through insertion Loss(dB)	<1.5dB
General Information
Detector Type	InGaAs
Optical Connector	FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type	SM 9/125um
Measurement Unit	dB/dBm/xW
Resolution (dB)	0.01dB
Operation Voltage(V)	DC 3.3V～5.5V
Power Supply	3pc1.5V battery
Continuously Operation time (h)	PON：90h	PON：90h OPM：100h VFL：50h	PON：90h VFL：50h	PON：90h OPM：100h
Operation Temperature(℃)	-10℃～60℃
Storage temperature(℃)	-25℃～70℃
Weight(kg)	423g	425g	424g	424g

Note: The operation time of the battery are all for the instrument that do not turn on back light, if the back light turn on the operation time will be shorted.

Normal Optical Power Meter Module：

Normal Optical Power Meter	AT3213^②	AT3213A		AT3213AP
Measurement Accuracy
Connatural uncertainty(dB)	None	±0.5dB
Linearity(dB)		±0.1dB
Measurement Range(dBm)		-70dBm～+6dBm
General Information
Measurement Unit	None	dB/dBm
Resolution (dB)		0.01dB
Calibration Wavelength(nm)		1310/ 1490/1550/1625	1310/ 1490/1550/1625
Detector Type		InGaAs
Optical Connector		FC/SC/ST Interchangeable/2.5 universal adapter

②：AT3213do not have the OPM module

VFL Module：

VFL	AT3213③	AT3213A	AT3213AV
Output power	None	>0.5mW
Wavelength		650nm
Optical Connector		FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type		SM/MM

③：AT3213 without VFL module

Standard Packages:

Model	3213 Series PON Optical Power Meter
Items	Title	Quantity
1	AT3213 tester	1unit
2	User Manual	1pc
3	USB	1pc
4	Soft CD	1pc
5	1.5VAA Battery	3pc
