AT4109 Fusion Splicer
ATEL is a company specializing in the production of optical fiber fusion splicer, optical fiber cleaver, OTDR, light source, optical power meter, and optical fiber fixture, and other optical communication instrument high-tech enterprises. Company production of AT4106, AT4108, AT4109 series fiber splicing machine is not only widely used in China Telecom, China Mobile, Unicom, radio and television major domestic telecommunications operators, but also exported to South America, Europe, Russia, Southeast Asia and Africa and other parts of the world.

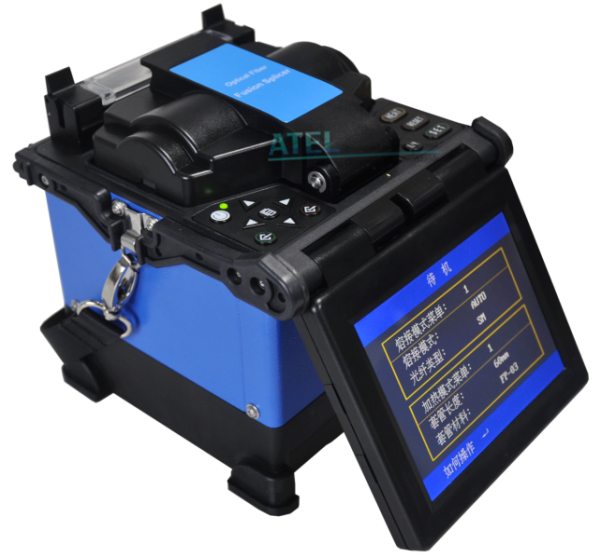

AT4109 Fusion splicer is designed to splice many types of fiber by using core diameter aiming rationale; its shape is compact, lightweight, which is suitable for field work. Operation is simple, fusion speed is high, and fusion loss is small.
Specifications:
Model
|
AT4109 Fusion Splicer
|
Splicing Type
|
SM, MM, DS, NZDS
|
Splicing Loss
|
0.02dB(SM),0.01dB(MM),0.04dB(DS),
|
Return Loss
|
>60dB
|
Splicing Mode
|
Manual, Half Auto, Auto
|
Fiber Alignment
|
Core to Core Alignment by PAS technology
|
Applicable Fiber
|
Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
|
Splicing Time
|
≤9s
|
Heat Time
|
≤30s
|
Cleaved Length
|
8~16mm
|
Fiber Image/ Magnification
|
350/280
|
View Display
|
5 inch digital high-quality LCD screen
|
Tension Test
|
Standard 2N (option)
|
Heat Shrinkable Sleeve
|
60mm, 40mm and serials heat Shrinkable Sleeve
|
Battery Capacity
|
7200mAh, 3 hours charging time
( splicing and charging at same time)
|
Battery Life
|
Cycling charge 300-500 times, easy to replace battery
|
Electrodes Life
|
3000, easy to replace electrodes
|
Power Source
|
≤20W
|
Interface
|
USB Convenient data download and software update
|
Construction Lighting
|
Built in high brightness, wide range of lights, easy to
operate at night
|
Power supply
|
Built in lithium battery 6800mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A
|
Operating Condition
|
0-5000m above sea level, Temperature: -10-60℃, Humidity:0~95%RH (No dew)
|
Weight (including battery)
|
1.98 KG (including battery)
|
Dimension (L×W×H)
|
135mm(L)×158mm(W)×155mm(H)
|
|
