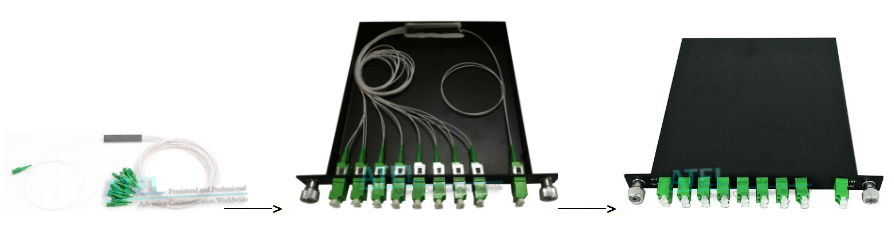

MODULAR CASSETTE SPLITTER LOADED WITH LC（2X2, 2X16）

ATEL Modular Cassette Splitter are design to installed in 19” Modular Fiber Optic Patch Panel.These cassettes are offering a flexible solution to the isp, osp end user, enable them to incorporate a multi-functional cassette which allow easy access during the installation, rework, maintenance with no disturbance of the existing fiber optic cables.

Loaded with LC/APC splitter 2X2 & 2X16

PLC Parameters

	2x2	2x16
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1
Insertion Loss (dB)(S/P Grade)	4.8/4.5	14.1/13.8
Loss Uniformity (dB)	0.5	1.2
Return Loss (dB) (S/P Grade)	50/55	50/55
Polarization Dependent Loss(PDL, dB)	0.2	0.3
Directivity (dB)	55	55
Wavelength Dependent Loss(dB)	0.3	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85

Key Features

- Low IL &PDL

- High reliability &good channel-to-channel uniformity

- High-density Cabling

- Large operating temperature range& Excellent Environmental

Applications

- FTTX (FTTP, FTTH, FTTN, FTTC)

- Local Area Networks (LAN)

- Cable television (CATV ) &Passive Optical Networks (PON)

- Test Equipment
