clasp slot
Time：2018/3/20 13:22:01

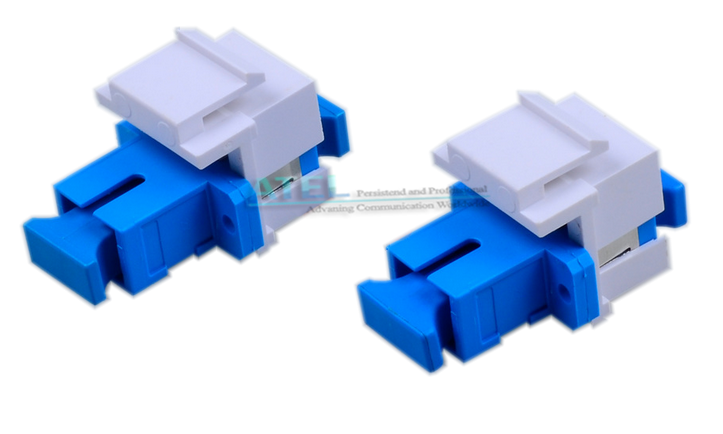

Optical fiber panel clasp slot



Applications

*ODF

*CATV

*Network communication equipment

* Optical fiber transmission system

* Optical jumper connection, test


Features

*Low insertion loss

* Good interchangeability and repeatability

* Meet IEC standards and ROHS requirements


SPECIFICATIONS

Type

FC/PC

SC/PC

ST/PC

LC/PC

Working wavelength

（1310-1650nm）

Insertion Loss(dB)

≤0.20dB

Repeatability(dB)

≤0.10dB

Exchangeability(dB)

≤0.20dB

Sleeve Material

Zirconia

Operating Temperature(℃)

-25~+70℃

Storage emperature(℃)

-40~+85℃
