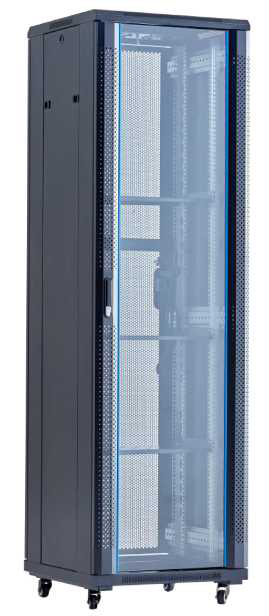

A Series Floor Standing Server Rack

Standard
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, and DIN41494 part 7, GBIT3047.2-92 standard.
Feature
19 inch width standard;
Removable Side Panels, side locks optional;
Knock off hole for entering cable on both top cover, bottom panel, real panel
Turning angle of front door is over 180 degrees Easy mounting installation Unassembled package saving shipping space fan, shelf, PDU are optional
Loading Capacity: 800KG
Degree of Protection: IP20
Material:
SPCC Cold Rolled Steel
Thickness: 2.0mm-1.2mm-1.0mm
Surface Finish: Powder Coating
Cabinet details:

Handle lock Zinc plated mounting profile U mark Handle lock

Removable side panels (Side lock optional) Cable entrance on rear panel Ground wire optional

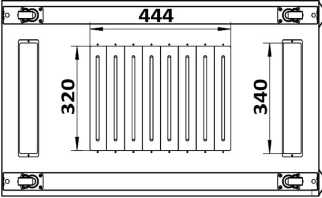

Main dimension (42U 600 x 1000mm)

Front (Toughened glass) Side

Specification
|
Model No.
|
Capacity
|
Width
|
Depth
|
Height
|
Volume
|
Standard accessories
|
|
|
(U)
|
(mm)
|
(mm)
|
(mm)
|
(CBM)
|
|
|
AS.6618
|
18
|
600
|
600
|
987
|
0.131
|
2 fans + 1 shelf
|
|
AS.6818
|
800
|
0.152
|
4 fans + 1 shelf
|
|
AS.6018
|
1000
|
0.182
|
4 fans + 1 shelf
|
|
AS.8818
|
800
|
800
|
0.212
|
4 fans + 1 shelf
|
|
AS.8018
|
1000
|
0.240
|
4 fans + 1 shelf
|
|
AS.6622
|
22
|
600
|
600
|
1164
|
0.146
|
2 fans + 1 shelf
|
|
AS.6822
|
800
|
0.169
|
4 fans + 1 shelf
|
|
AS.6022
|
1000
|
0.202
|
4 fans + 1 shelf
|
|
AS.8822
|
800
|
800
|
0.238
|
4 fans + 1 shelf
|
|
AS.8022
|
1000
|
0.267
|
4 fans + 1 shelf
|
|
AS.6627
|
27
|
600
|
600
|
1387
|
0.166
|
2 fans + 1 shelf
|
|
AS.6827
|
800
|
0.189
|
4 fans + 1 shelf
|
|
AS.6027
|
1000
|
0.227
|
4 fans + 1 shelf
|
|
AS.8827
|
800
|
800
|
0.268
|
4 fans + 1 shelf
|
|
AS.8027
|
1000
|
0.299
|
4 fans + 1 shelf
|
|
AS.6632
|
32
|
600
|
600
|
1609
|
0.186
|
2 fans + 1 shelf
|
|
AS.6832
|
800
|
0.211
|
4 fans + 1 shelf
|
|
AS.6032
|
1000
|
0.252
|
4 fans + 1 shelf
|
|
AS.8832
|
800
|
800
|
0.301
|
4 fans + 1 shelf
|
|
AS.8032
|
1000
|
0.333
|
4 fans + 1 shelf
|
|
AS.6637
|
37
|
600
|
600
|
1832
|
0.229
|
2 fans + 3 shelf
|
|
AS.6837
|
800
|
0.265
|
4 fans + 3 shelf
|
|
AS.6037
|
1000
|
0.315
|
4 fans + 3 shelf
|
|
AS.8837
|
800
|
800
|
0.364
|
4 fans + 3 shelf
|
|
AS.8037
|
1000
|
0.405
|
4 fans + 3 shelf
|
|
AS.6642
|
42
|
600
|
600
|
2054
|
0.248
|
2 fans + 3 shelf
|
|
AS.6842
|
800
|
0.285
|
4 fans + 3 shelf
|
|
AS.6042
|
1000
|
0.339
|
4 fans + 3 shelf
|
|
AS.8842
|
800
|
800
|
0.394
|
4 fans + 3 shelf
|
|
AS.8042
|
1000
|
0.437
|
4 fans + 3 shelf
|
|
AS.6647
|
47
|
600
|
600
|
2276
|
0.291
|
2 fans + 3 shelf
|
|
AS.6847
|
800
|
0.339
|
4 fans + 3 shelf
|
|
AS.6047
|
1000
|
0.402
|
4 fans + 3 shelf
|
|
AS.8847
|
800
|
800
|
0.457
|
4 fans + 3 shelf
|
|
AS.8047
|
1000
|
0.509
|
4 fans + 3 shelf
|

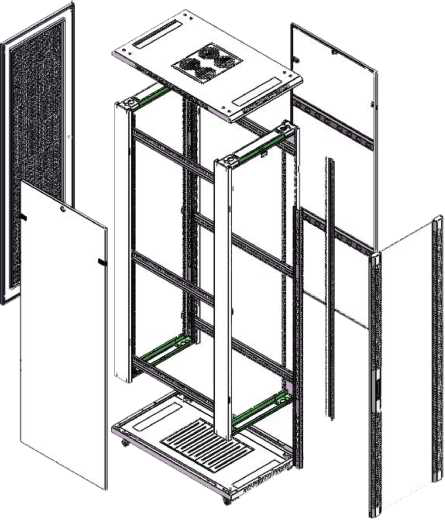

Main Parts
|
S/N
|
Specification
|
Quantity
|
Unit
|
Material
|
Surface Finish
|
Remark
|
|
1
|
Frame
|
2
|
Piece
|
SPCC cold rolled steel t1.0
|
Powder coated
|
|
|
2
|
Side panel
|
2
|
Piece
|
SPCC cold rolled steel t1.0
|
Powder coated
|
|
|
3
|
Top cover
|
1
|
Piece
|
SPCC cold rolled steel t1.2
|
Powder coated
|
|
|
4
|
Bottom panel
|
1
|
Piece
|
SPCC cold rolled steel t1.2
|
Powder coated
|
|
|
5
|
Mounting profile
|
4
|
Piece
|
SPCC cold rolled steel t2.0
|
Zinc plated
|
|
|
6
|
Mounting rail
|
4/6
|
Piece
|
SPCC cold rolled steel t1.2
|
Powder coated
|
|
|
7
|
Front door
|
1
|
Piece 5MM toughened glass door/SPCC t1.2 Powder coated
|
|
|
8
|
Back door
|
1
|
Piece
|
Single open mesh vented door t1.2
|
Powder coated
|
|
|
9
|
Castors
|
4
|
Piece
|
|
|
|
|
10
|
Leveling feet
|
4
|
Piece
|
|
|
|
|
11
|
Lock
|
2
|
Piece
|
|
|
with 2 keys
|
|
12
|
M6 Square nut
|
30
|
Piece
|
Steel
|
Color Zinc
|
|
|
13
|
M6 B-head screw
|
30
|
Piece
|
Steel
|
Color Zinc
|
|
|
14
|
Allen wrench
|
1
|
Piece
|
Steel
|
Color Zinc
|
|
|
Model No.
|
Front door
|
Rear door
|
|
AS
|
Toughened glass door with round vented
border(Handle Lock)
|
Mesh vented door(small round lock)
|
|
A2
|
Toughened glass door (small round lock)
|
Solid metal door(small round lock)
|
|
A3
|
Mesh vented door
|
Mesh vented door(small round lock)
|
Remark: lf choose split rear door will use handle lock
Color:
|
RAL9004
|
RAL7035
|
|
black
|
grey
|
|
|
|
Definition of Ornament strip color for toughened glass door:
Unassembled packing details (2-4 cartons)
Carton 1: top cover + bottom panel + 1 shelf
Carton 2: frame + mouting profile + door+ side panel
Carton 3: extra shelf if needed
Carton 4: vertical management if needed
|
